ospf construye rutas: Neighbors  data base exchange agregando la mejor ruta OSPF neighbors are routers that both use OSPF and both sit on the same data link. (misma subred)the routers send OSPF Hello messages, introducing themselves to the neighbor.show ip ospf neighborsOSPF Hello mediante el cual se crean relaciones con los vecinos.

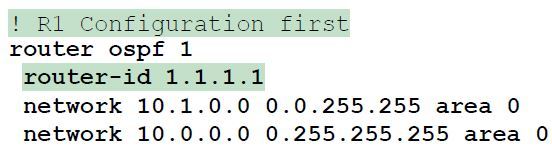

Router ID (RID),IOS chooses its OSPF RID based on an interface IPv4 address, because those are some nearby convenient 32-bit numbers as well. However, the OSPF RID can be directly configured

The Hello messages themselves have the following features: • The Hello message follows the IP packet header, with IP protocol type 89. • Hello packets are sent to multicast IP address 224.0.0.5, a multicast IP address intended for all OSPF-speaking routers. • OSPF routers listen for packets sent to IP multicast address 224.0.0.5, in part hoping to receive Hello packets and learn about new neighbors.

8Classful routing protocols do not send masks in the routing update messages.   OSPF, and the other uses EIGRP, on at least one router, both OSPF and EIGRP must be used. Then, that router can take routes learned by OSPF and advertise them into EIGRP, and vice versa, through a process called route redistribution.   Si el router aprende rutas por diferentes protocolos de enrutamiento  to the same subnet, because each routing protocol’s metric is based on different information, IOS cannot compare the metrics. Distancia administrative denota que tan credible es un protocol de enrutamiento entero  en un solo router. El numero mas bajo, el major, o el protocol de enrutamiento mas creible .   For example, RIP has a default administrative distance of 120, OSPF uses a default of 110, and EIGRP defaults to 90. When using OSPF and EIGRP, the router will believe the EIGRP route instead of the OSPF route (at least by default).   link-state advertisement (LSA) In OSPF, the name of the data structure that resides inside the LSDB and describes in detail the various components in a network, including routers and links (subnets). link-state database (LSDB) : en OSPF la estructura de datos en  In OSPF, the data structure in RAM of a router that holds the various LSAs, with the collective LSAs representing the entire topology of the network.   Each LSA is a data structure with some specific information about the network topology; the LSDB is simply the collection of all the LSAs known to a router.

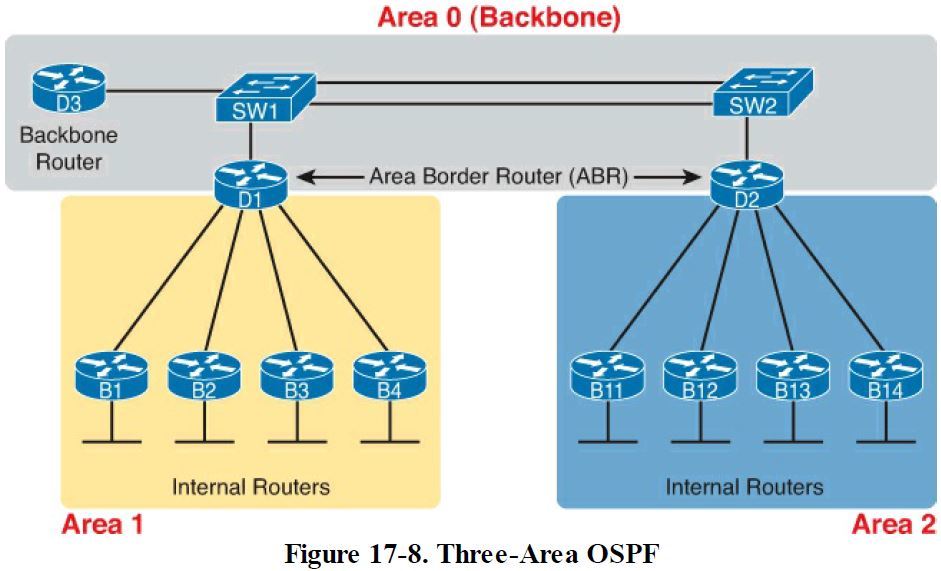

se configura diferentes areas para evitar una LSDB grande lo cual generaria gran consumo de performance:por area se recomiendan solo 50 routers, aunque esto depende es del diseño, la cantidad de ram, cpu etc.Area Border Router (ABR): un router que usa ospf y tiene interfaces en multples areas OSPF.

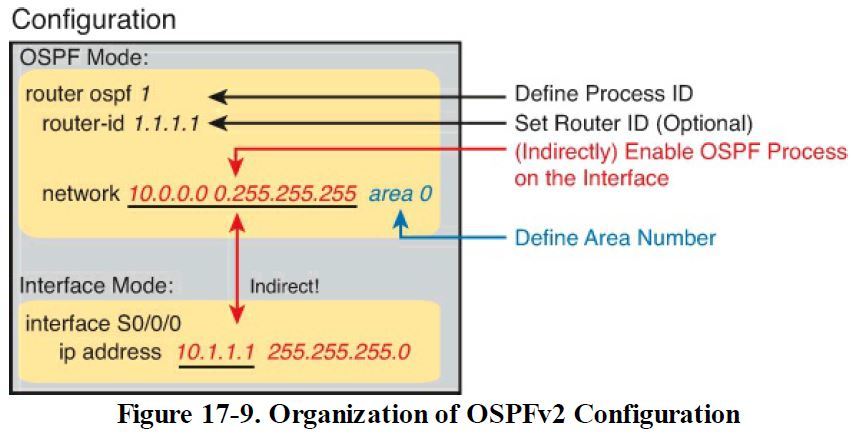

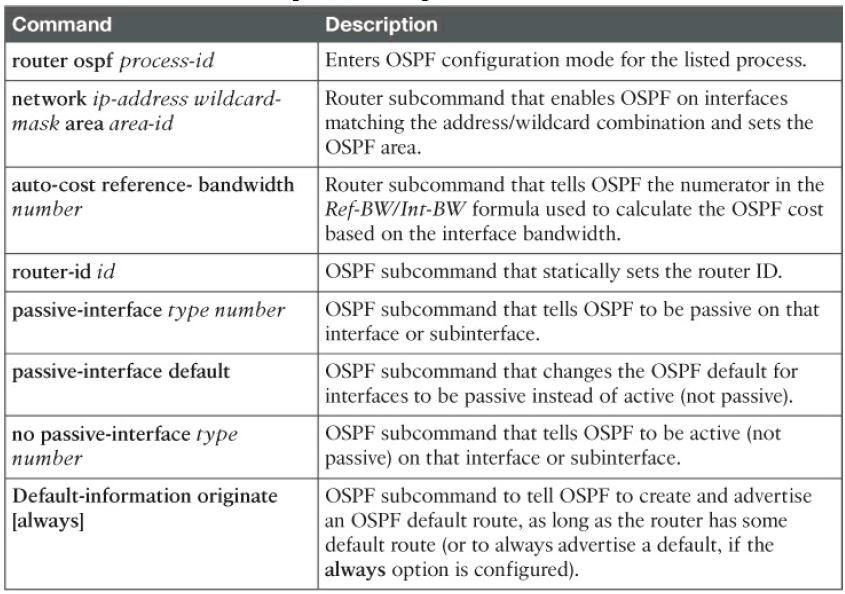

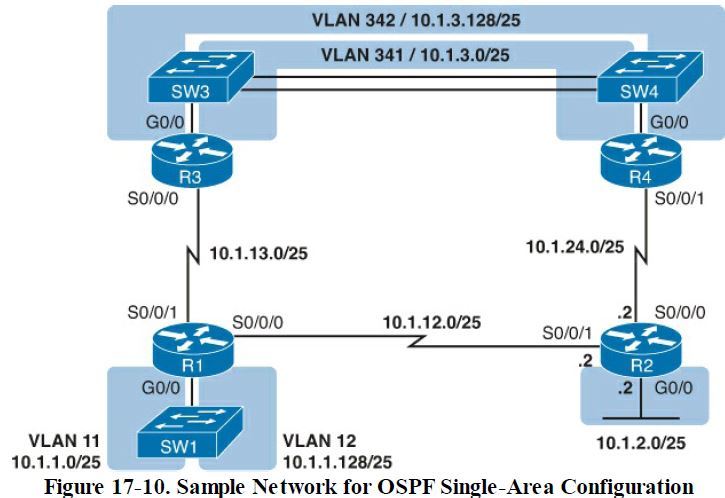

router ospf id_procesonetwork red mascara wilcard area num

show ip protocols

Por defecto, los routers escogeran unadir ip de una interfaz para usar como RID (router ID).

show ip ospf neighbor:enumera los ID de router más reconocibles.

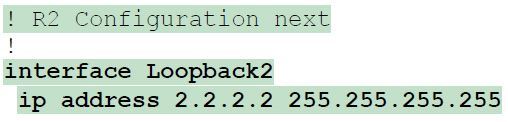

To find its RID, a Cisco router uses the following process when the router reloads and brings up the OSPF process. Note that when one of these steps identifies the RID, the process stops. 1. If the router-id rid OSPF subcommand is configured, this value is used as the RID. 2. If any loopback interfaces have an IP address configured, and the interface has an interface status of up, the router picks the highest numeric IP address among these loopback interfaces. 3. The router picks the highest numeric IP address from all other interfaces whose interface status code (first status code) is up. (In other words, an interface in up/down state will be included by OSPF when choosing its router ID.)

clear ip ospf process

show ip ospf

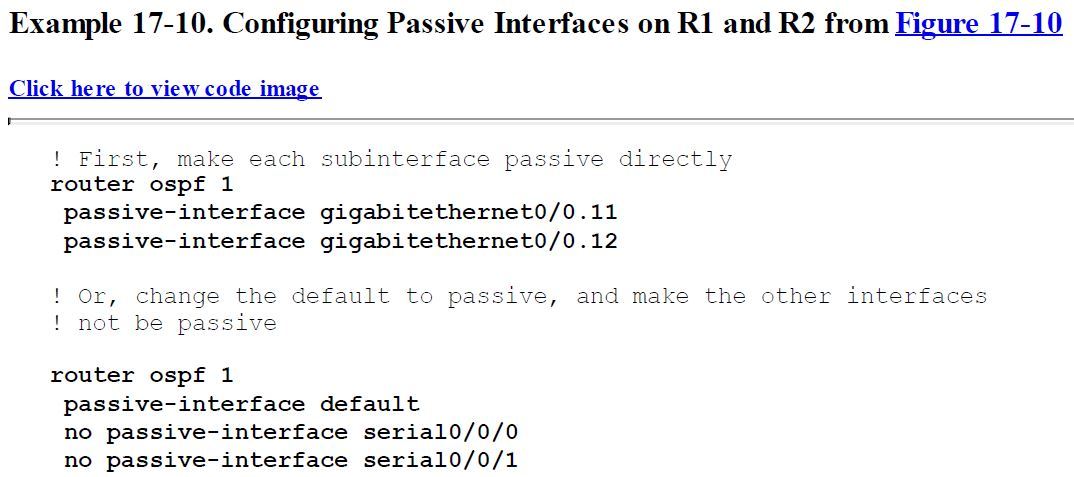

interfaces pasivas ospfinterfaces en las cuales el router no necesita establecer vecindad y por ende enviar paquetes hello. Quit sending OSPF Hellos on the interface  Ignore received Hellos on the interface  Do not form neighbor relationships over the interface

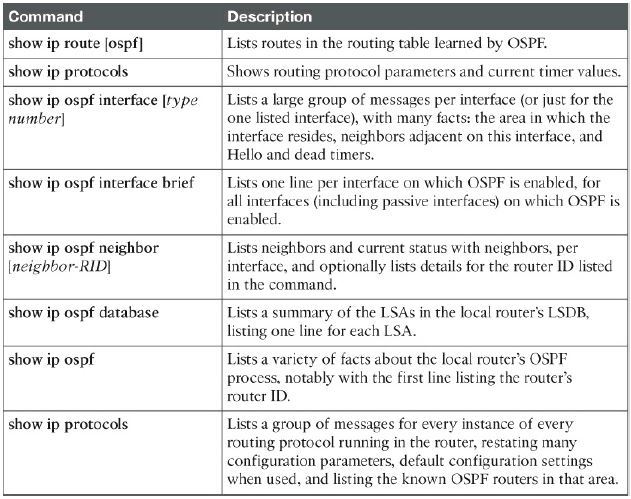

show ip ospf interface brief command lists all interfaces on which OSPF is enabled, including passive interfaces. The show ip ospf interface command lists a single line that mentions that the interface is passive

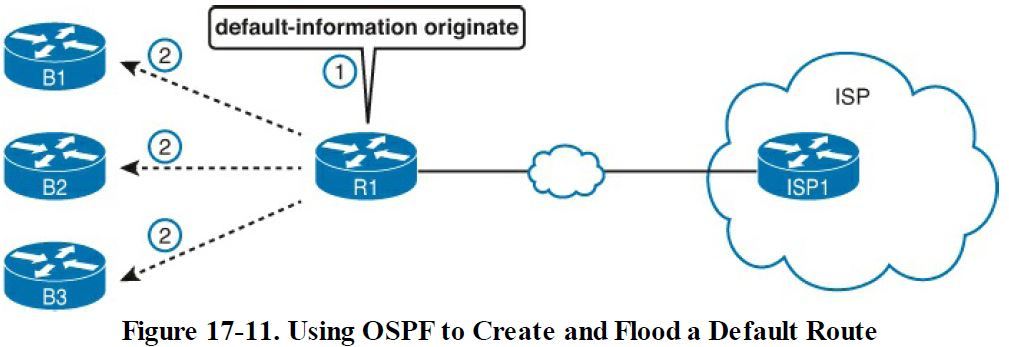

default-information originate: propagar la ruta por defecto

metrica: unidad de medida usada por los algoritmos de protocolos de enrutamiento para determinar la mejor ruta para trafico a usar para alcanzar un destino particular.
