Binary Logic
Background
Decides between 2 states - 1 and 0
Uses simple transistors and capacitors
Computers use transistors and capacitors to store data
Can wire multiple transistors together for simple logical calculations - whether input 1 or 0
These circuits called logic gates
AND Gate
Output true if both inputs true

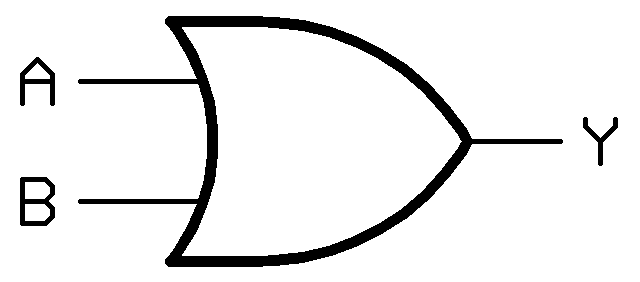

OR Gate
Output true if either or both inputs true

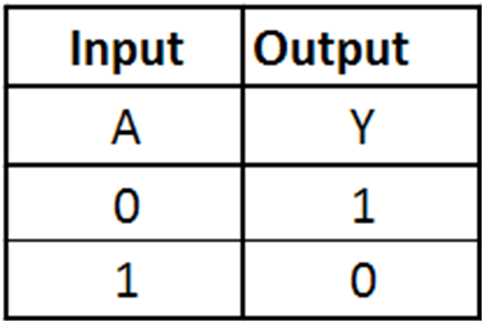

NOT Gate
One input - output opposite to input

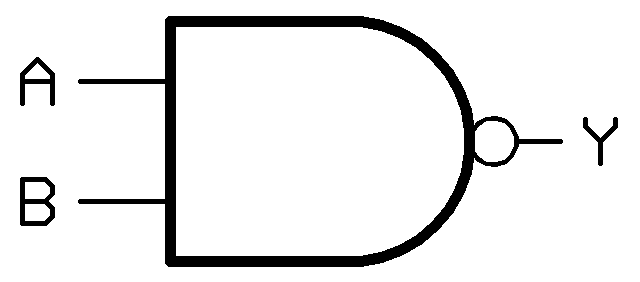

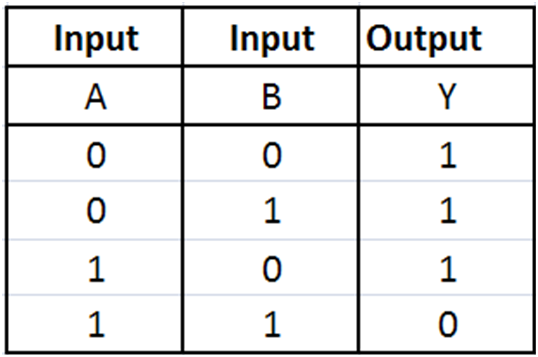

NAND Gate
Combination of AND and NOT - output true when one or both inputs false
NOR Gate
Combination of OR and NOT - output true when either or both inputs true
