IBUTG
Requisito Legal
NR-15 - Anexo 3
2 Fórmulas
Ambientes sem carga solar (internos ou externos)
IBUTG = 0,7 tbn + 0,3 tg
TBN = Leitura do Termômetro de bulbo úmido Natural
Algodão úmido
SENSÍVEL Corrente de Ar
CONVECÇÃO INFLUENCIAR ESTE TERMÔMETRO
TG = Leitura do termômetro de globo
Capturar o efeito da RADIAÇÃO
TBS = Leitura do termômetro de bulbo Seco
Termômetro convecional
IBUTG - Índice de Bulbo Úmido Termômetro de Globo
Ambientes com carga solar (externos)
IBUTG = 0,7 tbn + 0,1 tbs + 0,2 tg
Limites de Tolerância para Exposição ao Calor
Proposta
Transmissão de Calor

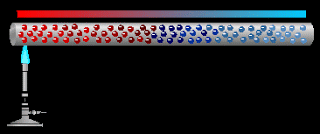

Condução
Radiação
Convecção
Fácil
AMBIENTE SEM CARGA SOLAR
IBU-TG
1º BULBO ÚMIDO
TBN * 7
2º TERMÔMETRO DE GLOBO
TG * 3
SOMAR TUDO E DIVIDE POR 10
AMBIENTE EXTERNO OU INTERNO
AMBIENTE COM CARGA SOLAR
IBU-TG
1º BULBO ÚMIDO
TBN * 7
2º TERMÔMETRO DE GLOBO
TG * 2
3º TERMÔMETRO TERMÔMETRO DE BULBO SECO
TS * 1
SOMAR TUDO E DIVIDE POR 10
AMBIENTE EXTERNO
