STRUCTURES
- Set of elements in a body that are designed to
resist the effects of the forces that act on it, while
maintaining its original shape
- Structural conditions
- Stability
- Resistance
- Rigidity
- Stability
- Functions
- Storage

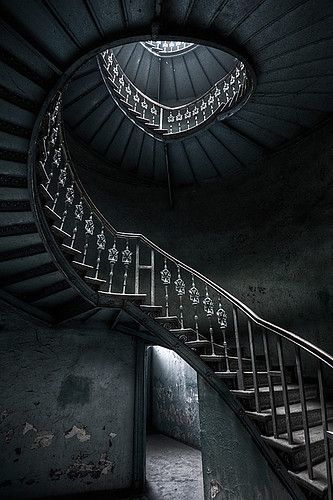

- Height functions

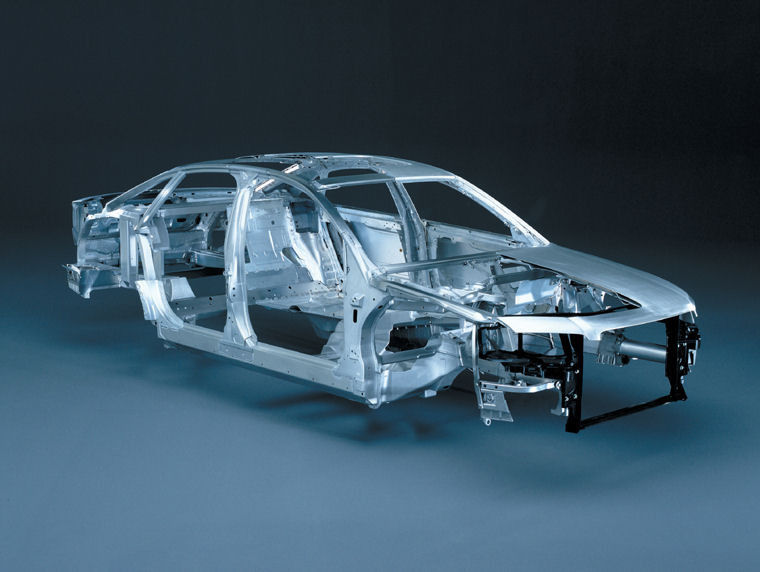

- Protection and shape maintenance
- Coverage and spaces creation function

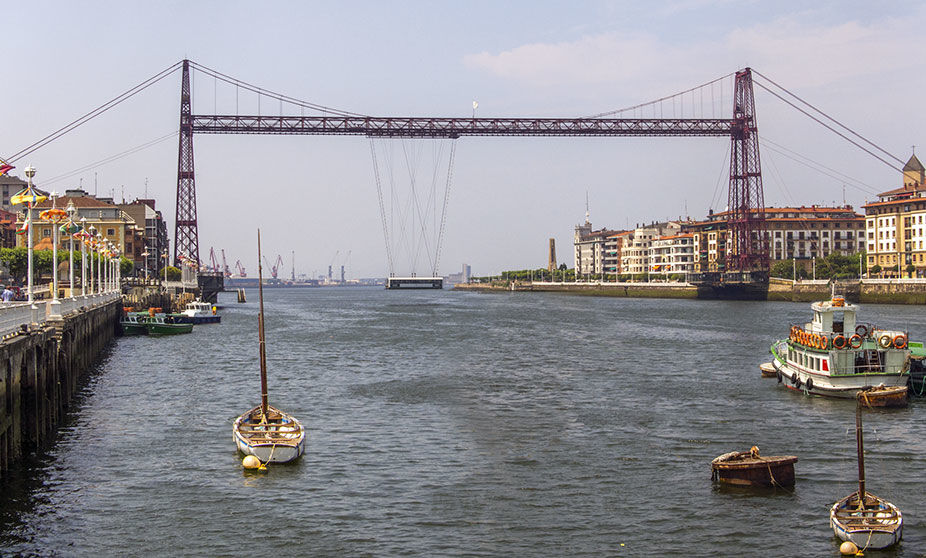

- Traversing geographic obstacles
- Storage
- Force
- Physical magnitude able to
alter the shape or the
movement state of an element
- Loads
(forces
upon a
body)
- Permanent
- Variable
- Permanent
- Physical magnitude able to
alter the shape or the
movement state of an element
- Stresses
- Traction
- Compression
- Bending
- Torsion
- Shearing or cutting
- Traction
- Types (man-made)
- Massive structures, lintels
- Vaulted

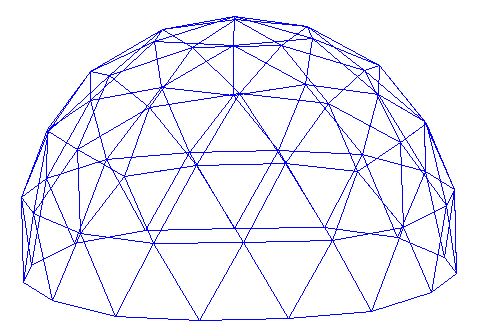

- Triangular
- Suspended
- Reinforced concrete structures
- Laminated
- Massive structures, lintels
- Structural elements
- Columns, pillars and pilasters
- Beams, joists and lintels
- Arches and vaults
- Butresses and flying butresses
- Load bearing and retaining walls
- Concrete slabs
- Columns, pillars and pilasters
