Machine scheduling
Descripción
Mapa Mental sobre Machine scheduling, creado por hoàng đậu el 03/02/2016.
Mapa Mental por
hoàng đậu
, actualizado hace más de 1 año
Más
Menos
Creado por
hoàng đậu
hace más de 8 años
9
0
0
Resumen del Recurso
Machine scheduling
Single machine scheduling
1//Cmean & ΣCj
SPT
Increase of processing time
1//ΣwjCj
WSPT
Decrease of wj/pj
1//Tmax & Lmax
EDD
Increase of due date
1//ΣUj Number of Tardy job
Moor’s algorithm
Initial order = EDD
Compare Cj and Dj
1//ΣTj & 1//ΣwjTj
Branch and bound
Dividing to small node
Comparing the lowest number to different level
1/prec/Tmax
Lawler’s algorithm
Choose lowest Tardiness to be last job
Choose jobs have no predecessor
Other scheduling method
FCFS
First come first serve
HWF
Heavy weight first

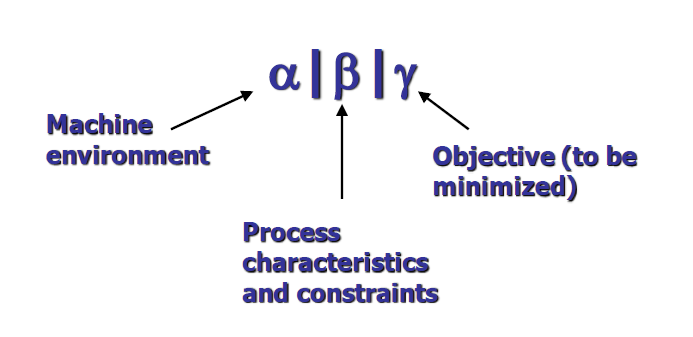

Notation
Prec
Precedence constraints
Initial order
Order before assigned or selected
Prmu
Permutation
The queues in front of each machine operates according to the FIFO discipline
All jobs have unchaged order on machines
Flow shop
Same order on machines
Job shop
Different order on machines
More than 1 machine
Pm /Cmax
LPT
assigns the m longest jobs to the m machines
The next longest job for freed machine
Pm /ΣCj
McNaughton algorithm
Initial order = SPT
Assign jobs to m machines in rotation
F2|prmu|Cmax (Flow shop)
Johnson’s rule (only for 2 machines)
2 set
Set 1 = p1j<p2j
SPT of machine 1
Set 2 = p1j>p2j
LPT of machines 2
Set 1 go first then set 2
Remember to find both order and objective
Rotation
Recursos multimedia adjuntos
028d8039-c857-4888-a23f-8ec6a9878e80 (image/png)
2d1b5c62-adb6-4299-bb1f-9bee141db338 (image/png)
