Chromosomes, Genes and DNA
Key Facts
The genetic material- deoxyribonucelic acid- is contained in the Chromosomes
Chromosomes occur in functional pairs except in gametes
Genes are short sections of Chromosome that control specific characterisitics
Genes are therefore short lenghs of DNA

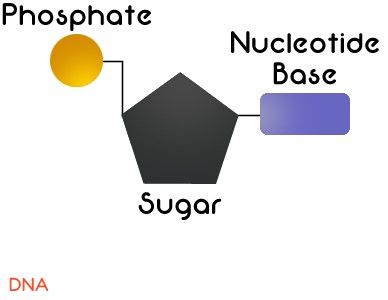

Structure of DNA
Backbone
Deoxyribose Sugar
Bases
Phosphate
Nucleotide
Bases
Pyrimidines
Thymine
Cytosine
Purines
Adenine
Guanine
Complementary base pairs
Double helix structure
Chromosomes
Humans have 46 Chromosomes
They are arranged into 23 pairs
A chromosome is a tightly coiled length of DNA
A GENE is a short length of DNA that codes for a protien or characteristic

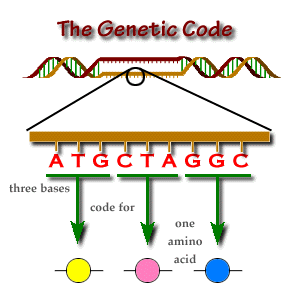

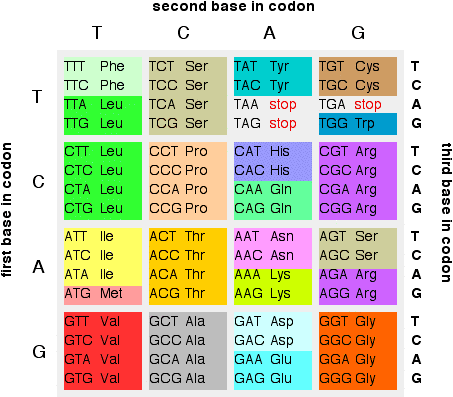

Base triplets
Why have three?
"CCA" "CCC" "CCG" and "CCT" code for the same amino acid- this lowers the chance of mutatos
If the change in base results in a different amino acid being formed then it will form a different protein and may not function
Causes: Radiation e.g UV Light
Discovering DNA
Watson and Crick
Used modelling to hypothesise the 3 dimensional structure of DNA in the double helix format
Franklin and Wilkins
Studied the 3 dimensional structure of DNA using crystallograpgy (X-rays)
Chargaff
Discovered that there where equal amounts of guanine and cytosine as well as adenine and thymine
