Horizontal curves -definitions

Description

Degree level Surveying & Highway Design (Horizontal curves) Flashcards on Horizontal curves -definitions, created by rhiannonsian on 29/03/2015.
rhiannonsian
Flashcards by rhiannonsian, updated more than 1 year ago
rhiannonsian
Created by rhiannonsian over 9 years ago
5
0

Resource summary

Question Answer

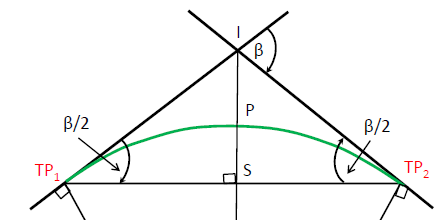

Tangent points TP1 and TP2 are the tangent points where the circular curve touches the straights

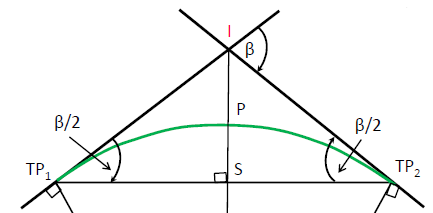

Intersection point I is the intersection point of the two straights

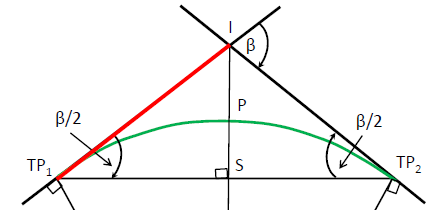

Tangent Distance TP1–I & TP2-I are the Tangent distance

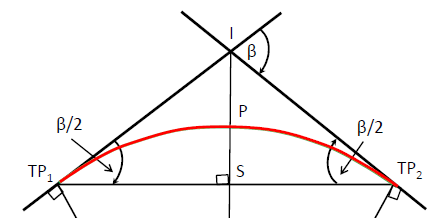

Circular curve (arc) TP1–P-TP2 is the circular curve (Arc) between the two tangent points
Circular Curve (arc) contd. Lc is the length of the circular curve = Arc Length P is the mid-point of the circular curve

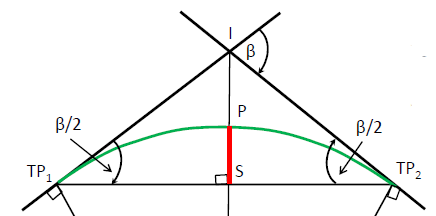

Long Chord S is the mid-point of the long chord PS is Height of Long Chord
Deflection angle β β = Deflection Angle + = right hand curve - = left hand curve
Radius R is the Radius of Curvature of the circular curve

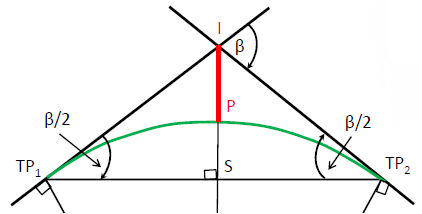

External distance External Distance = PI
