Surgery Instruments

Question	Answer

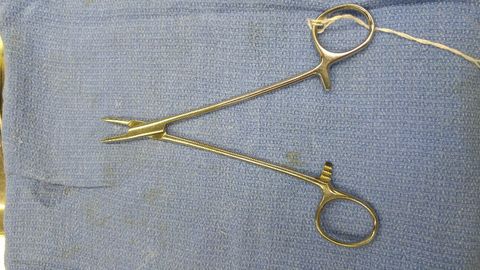

Image: 55403c58-fab0-4b3b-a531-7918cb752296 (image/jpeg)	Mayo Hegar Needle Holder-gold handles (indicate carbide insert a hard material), doesn't have scissors, can be 3.5 to 14 inch

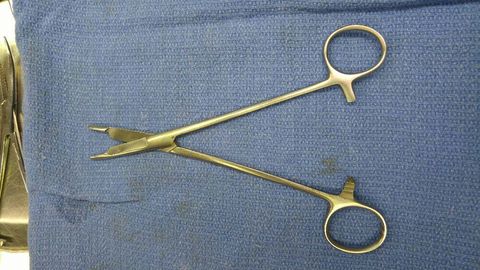

Image: 814cdb32-fab4-437c-b3c8-dfea750edbe6 (image/jpeg)	Olsen Hegar Needle Holders-has scissors; allows suture to be cut

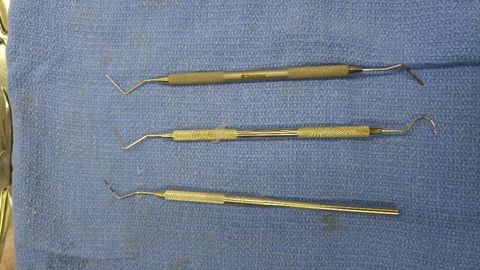

Image: 4c07a328-81e3-4532-8a23-665acf2b8a4d (image/jpeg)	Dental Probe-3 mm clear, the black then cleae, go around upper and lower sulcus and do averaging (not all are 3mm)

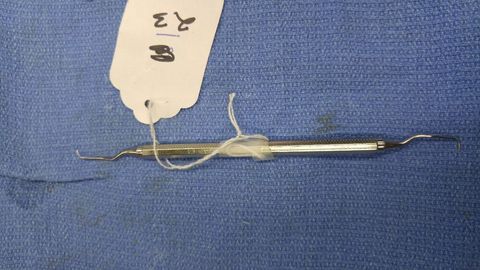

Image: ea2e2d80-dfb2-48f0-8993-00922ebc05a6 (image/jpeg)	Scaler-go up underneath the gingival mucosa and pull down

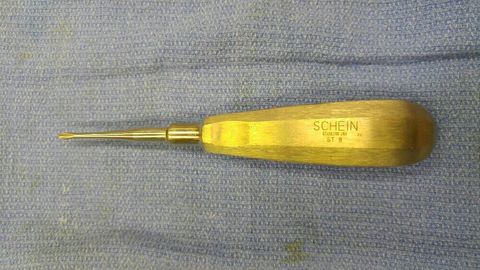

Image: 4dec114c-a0f0-4901-b02c-ea6fa25aaa14 (image/jpeg)	Periosteal Elevator-rotate and elevate the tooth, elevate periosteum and tear periodontal ligament apart

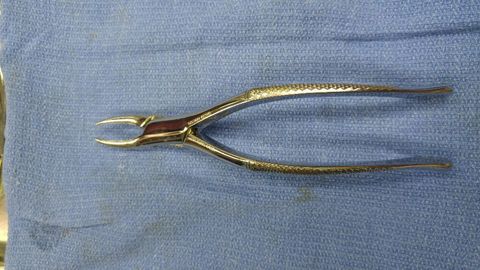

Image: f5ee015a-1554-4603-a026-7f5c4df80c26 (image/jpeg)	Extraction forceps- tips don't come together; with Ronguers the tips come together. Used for pulling teeth and crack the tartar to get plaque to come off easier, always pull up

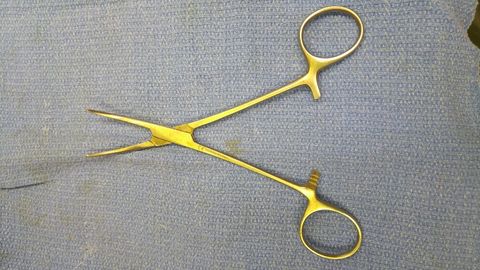

Image: 3ba455c1-cfac-45ac-859f-60f8a3f9199c (image/jpeg)	Kelly Hemostat-for larger volume or mass of material

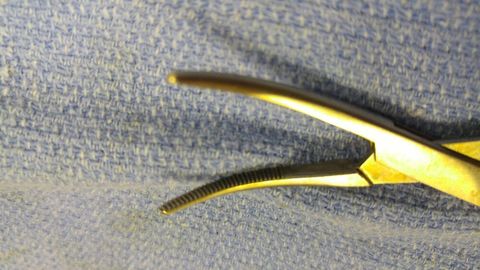

Image: e17edf3a-a574-4440-8c6f-27a11439b165 (image/jpeg)	Kelly Hemostat

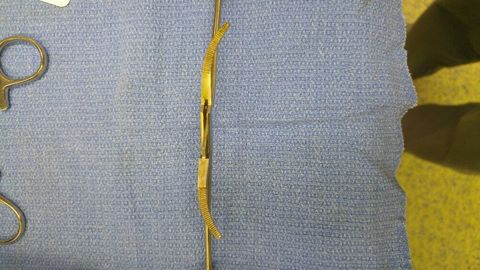

Image: 4c98bcf3-c69a-492e-93f4-94f7ee5e14b4 (image/jpeg)	Kelly Hemostat-serrations only go halfway down (can be straight or curved)

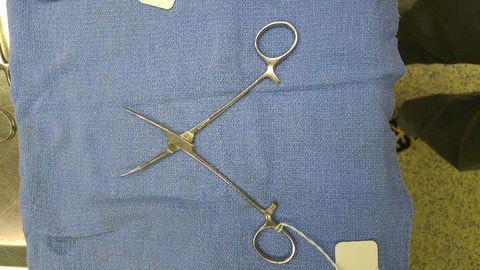

Image: f5744b43-eb4b-45e5-b5f7-41b85569467b (image/jpeg)	Crile Hematocrit-for large volume or mass of material

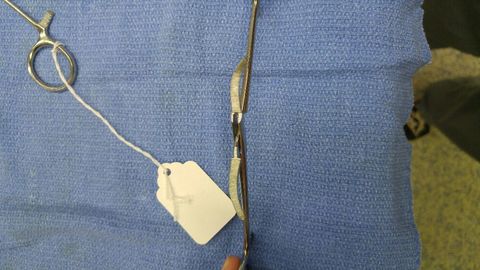

Image: c9394ba2-08dc-48c5-8c74-0e491a48d6bc (image/jpeg)	Crile Hemostats-serrations all the way down (can be straight or curved). Both kelly and crile approx. 6 inches in length

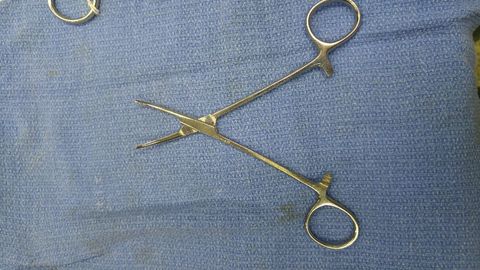

Image: 35c26af3-95b2-40ca-9f34-344191abbef0 (image/jpeg)	Halstead Mosquito Hemostat-cause hemostasis; stop bleeding of blood vessels; use on small amount of tissue, to clamp small vessels

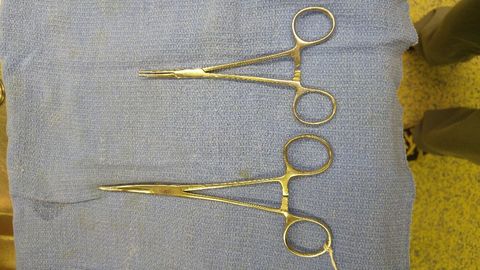

Image: 8c6e802e-85a1-49ec-b39b-53aacd1cedd6 (image/jpeg)	Crile on bottom, mosquito on top (mosquito 5 inches and smaller, jaws more thin and delicate w/serrations all the way to hinge, curved or straight)

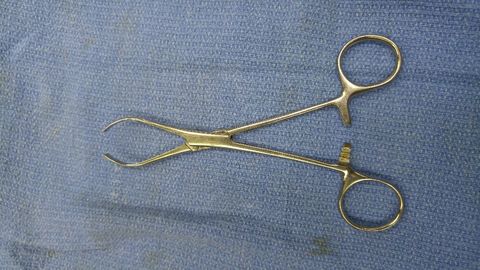

Image: feadb23d-5024-4509-b302-7a7b7f34eb85 (image/jpeg)	Atraumatic towel clamp-attach to towels only, never for holding tissue

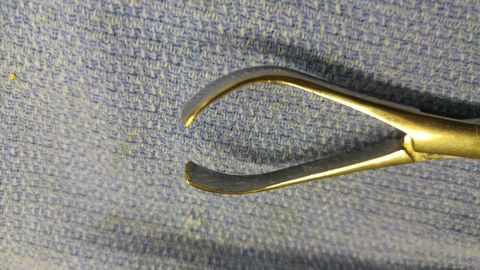

Image: 1fa9e260-7401-48de-aaad-81e2c35a5c33 (image/jpeg)	Atraumatic Towel Clamp-Hess uses for attaching power cord to table or holding wires of caudering unit

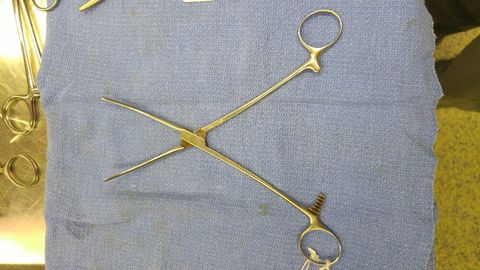

Image: 91bc0d05-8e7d-4a56-b418-307c486559b7 (image/jpeg)	Rochester Pean Forceps-never intended for hemostasis; holds large volumes of tissue; 7 or 8-14 inches; curved or straight; serrations down to hinge; crush the tissue; can use on the stomach

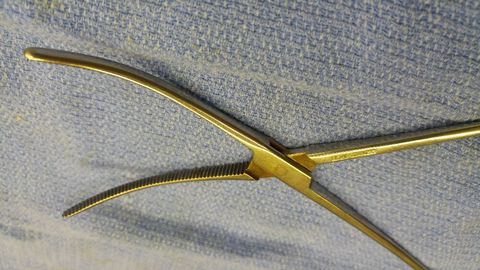

Image: c6b310b9-774a-4161-a760-d0291a8b8cf4 (image/jpeg)	Rochester Pean Forceps

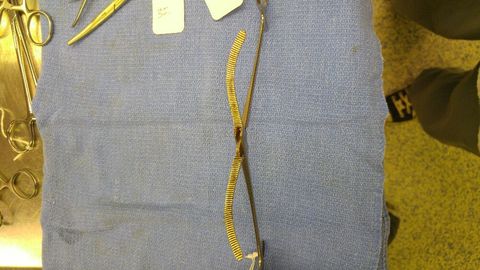

Image: 92a7f1d2-6c8c-4469-b4b1-754231ecc3b7 (image/jpeg)	Rochester Pean Forceps

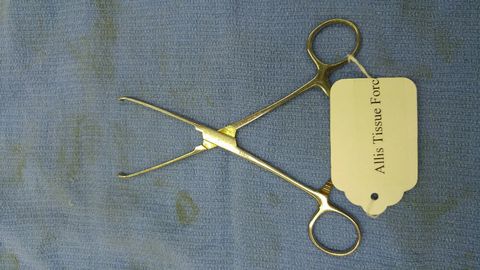

Image: b1c38986-6a04-4990-aded-9937f318a3b2 (image/jpeg)	Allis Tissue Forceps-holding delicate tissue -should not put on skin -should grab subq under skin or you'll cause trauma -fascia around muscle, heavy outer tunic, membranes; (used to grasp tough tissue or tissue being removed) -serious of teeth that interdigitate together, space bt jaws

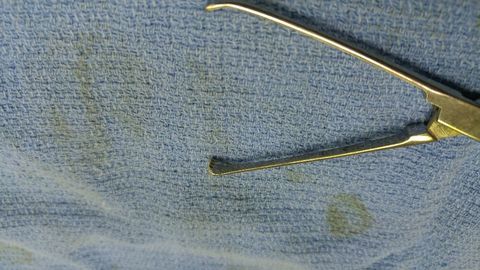

Image: 5efcdefc-a89b-4137-a057-d62ebd5dcac7 (image/jpeg)	Allis Tissue Forceps

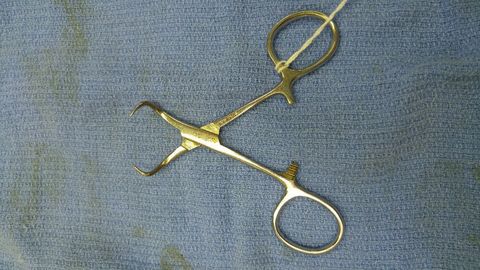

Image: 95aca639-8666-4d50-b30e-3ca5ba1455c9 (image/jpeg)	Backhaus Towel Clamp -sharp teeth that penetrate and cut through things -use because towels slide off patients -go through the towel and grab tissue -always look at 4 corners to look for hemorrhage and let owner know -tell them to call in a week; will go away in 4-5 days; to be expected but not normal -3.5 or 6 inches
Image: 05f7cf68-b53f-49c3-84af-8a3137a2c403 (image/jpeg)	Kern Bone Holding Forceps -Orthopedic instrument -5 or 6, 7 and 14 inch sizes -2 sets of teeth, opposite each other that align -can get deep in the bone -hold bome fragments together until permanent fixation

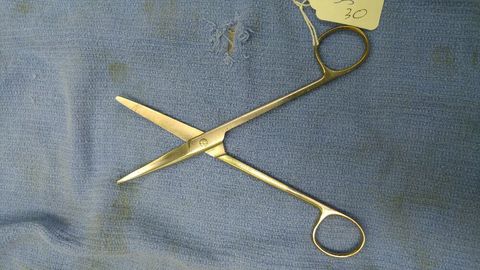

Image: b7e5024e-18b5-4385-8aa1-73d06c47c840 (image/jpeg)	Mayo General Operating Scissors -curved or straight -blunt blunt, blunt sharp, sharp sharp -cutting suture material and heavy tissue (large amounts of tissue) -(cutting large muscle masses, cartilage, or nondelicate tissue)

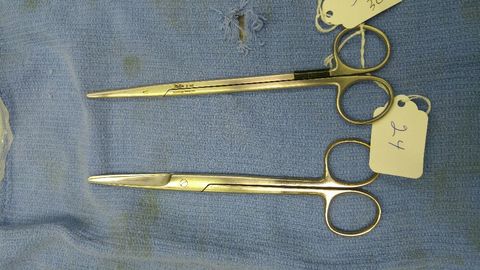

Image: fd3f02f6-0e63-4853-8b9a-32bb46c11b67 (image/jpeg)	Metzenbaum Scissors on top, Mayo General Operating Scissors on bottom

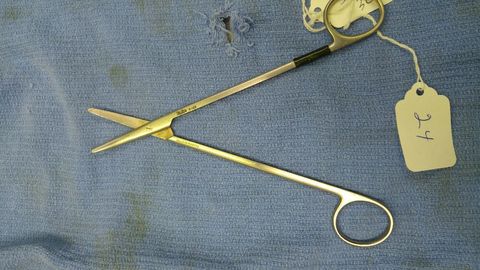

Image: 0941cd22-cbb0-44e0-bfbc-541edc15b407 (image/jpeg)	Metzenbaum Scissors -curved or straight -blunt blunt, sharp blunt, sharp sharp -delicate tissue -cutting or blunt dissection (push into tissue and open them) -mobilize the tissue -tearing capillaries which tend to clot quicker -thin shaft, short distance bt jaws

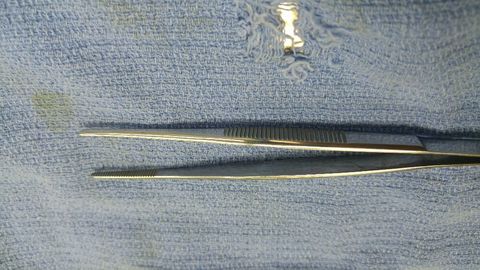

Image: 8b19f4b3-2e0c-44ce-80eb-7b6df15a70b6 (image/jpeg)	Sponge Thumb Tissue Forceps -hold 4x4 sponges -small serrations perpendicular to axis

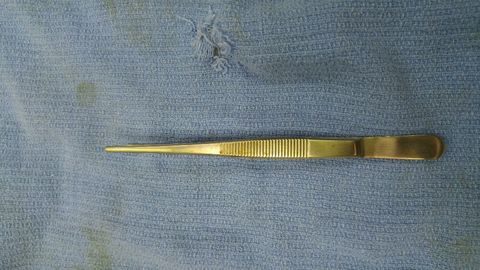

Image: af7b66a8-28eb-4b73-a14f-9d742852d316 (image/jpeg)	1 2 Teeth Thumb Tissue Forceps -grasping tissues, manipulating, or aligning -relatively atraumatic -also have 3 4's

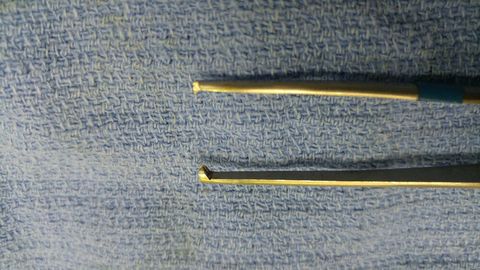

Image: 8f868792-8ae4-4e75-bef1-fff21f9f5be6 (image/jpeg)	1 2 Teeth Thumb Tissue Forceps

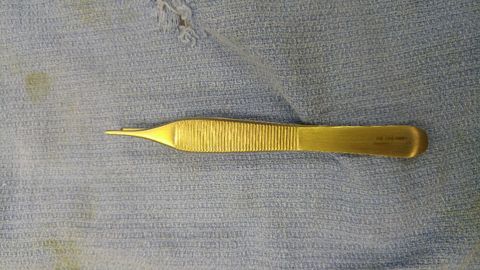

Image: 1035567c-2ff9-46b9-b524-80e46a1cd2b7 (image/jpeg)	Adson -delicate tissue, small volume -aligning tissue -suturing or looking at tissue -wide base then narrows -1 2 teeth

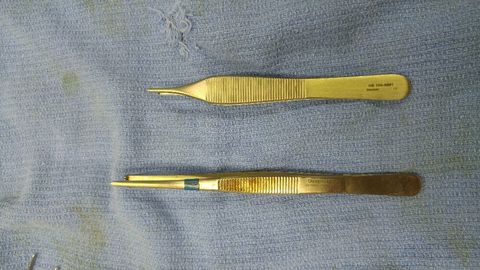

Image: d4af4457-ac8e-434e-9bbe-35fb08589e0b (image/jpeg)	Adson on top 1 2 on bottom

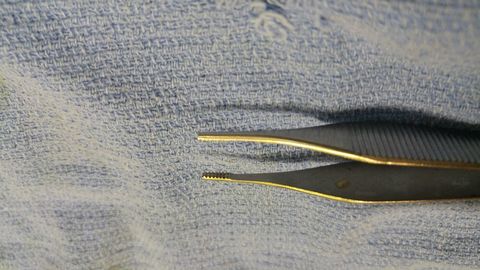

Image: b0404113-fd38-4095-bc81-633eb9b08886 (image/jpeg)	Adson Brown -same shape as Adson but serrations up and down shaft -grab tissue on a much wider base -delicate tissue, small volume

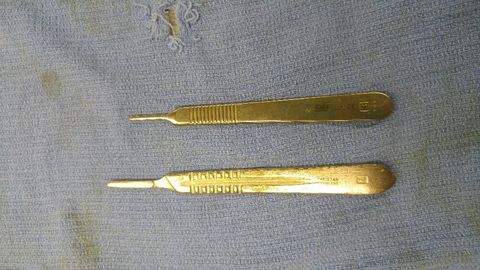

Image: 0362a462-0757-4943-8bc9-2911ab688ac9 (image/jpeg)	BP Bard Parker Scalpel Handle -3 on top (take blades 13-19, teens) -4 on bottom (takes blades in the 20s -Have a slot and space with an angle, slide into the slot -Handle scalpel blades with needle holders; grasp blade at wide area closer to top
Passing instruments	Pass with index finger by the hinges with middle finger and thumb on the sides of the instrument. Place in persons hand firmly.
