Basics in ICT -logic gates

Question	Answer
What is a logic gate?	A logic gate is an elementary building block of a digital circuit which perform functions with low(0) or high(1) binary conditions.
NOT Gate	Performs logical complementarity Image: 72259770-7540-44e2-810c-9bafccb43591 (image/png)
AND Gate	Performs logical multiplication Image: 8384190e-887b-4f0d-b968-7ad9df54bd96 (image/png)
OR Gate	Performs logical addition Image: cf4f7243-8cde-4794-9522-8efed0e2670e (image/png)

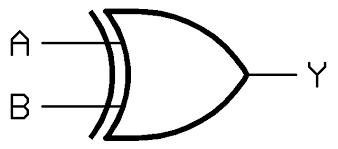

Exclusive OR Gate or XOR Gate	Image: f72fb455-36ab-4540-9676-30a74ec1243c (image/png)

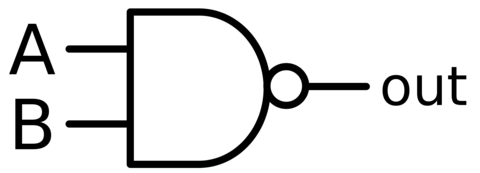

NAND Gate	performs NOT and AND operations. Image: aeafb523-2b61-4c6d-bc37-0b505b156ace (image/png)

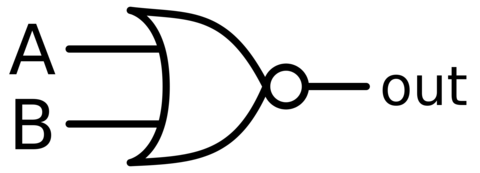

NOR Gate	Performs NOT and OR operations. Image: 329aba55-94e8-46ad-bb8d-eab7fd92a88f (image/png)
XNOR gate	Performs XOR and Not Operations. Image: 6048cfd4-132c-41d2-ae62-55af9f0e32cf (image/png)
