circuit
series circuit / pararel circuit

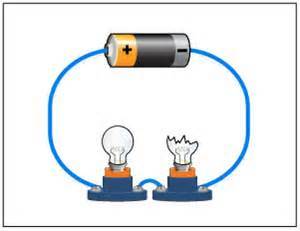

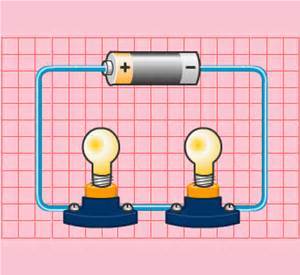

sieres circut
they folow a single path.
if one bolb bers out , all the light go out

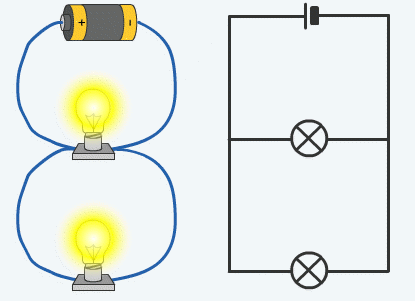

parallel circuit
electrict charge can flow through both the top loop and the bottom loop
if one breaks only that one stop working

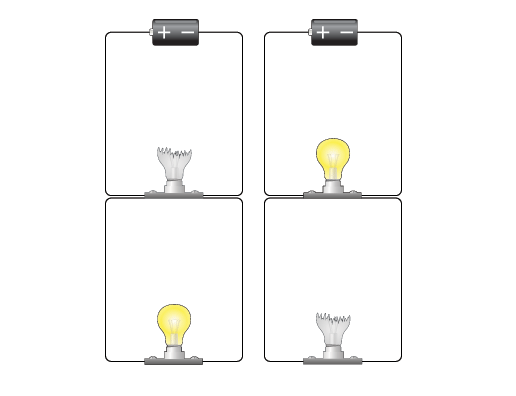

open circuit / closed circuit
open circuit
when the switch is open , is not complete .
charges can't flow so light is OFF
closed circuit
when the switch es closed , the cuircuit is complete
electrict charge can flow so the light are on
