MÀQUNES SIMPLES
LA PALANCA
Consisteix en una barra rígida o braç que es pot moure sobre un punt de suport

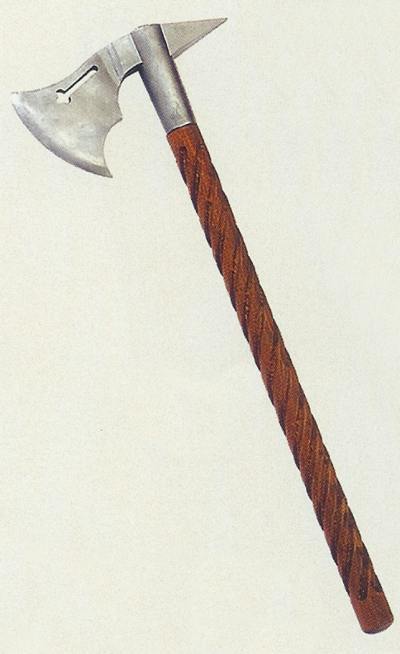

EL TASCÓ
És una peca que resulta de la unió de dos plans inclinats.

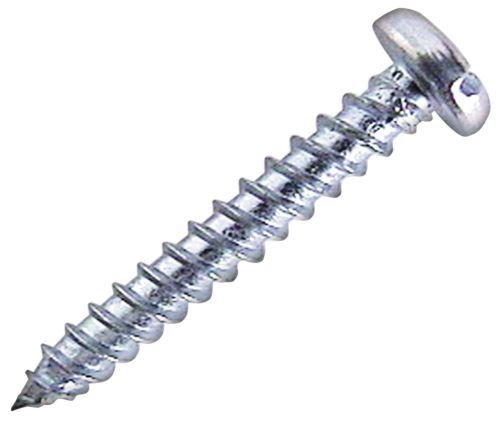

EL CARGOL
És un cilindre amb un filet en forma d'espiral.
LA POLITJA
És una roda que gira al voltant d'un ei,x, amb una canal al cantell, per on passa una corda o un cable.

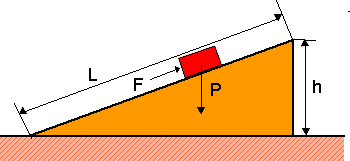

EL PLA INCLINATAT
´És un pla que forma un cert angle amb un pla horitzontal.

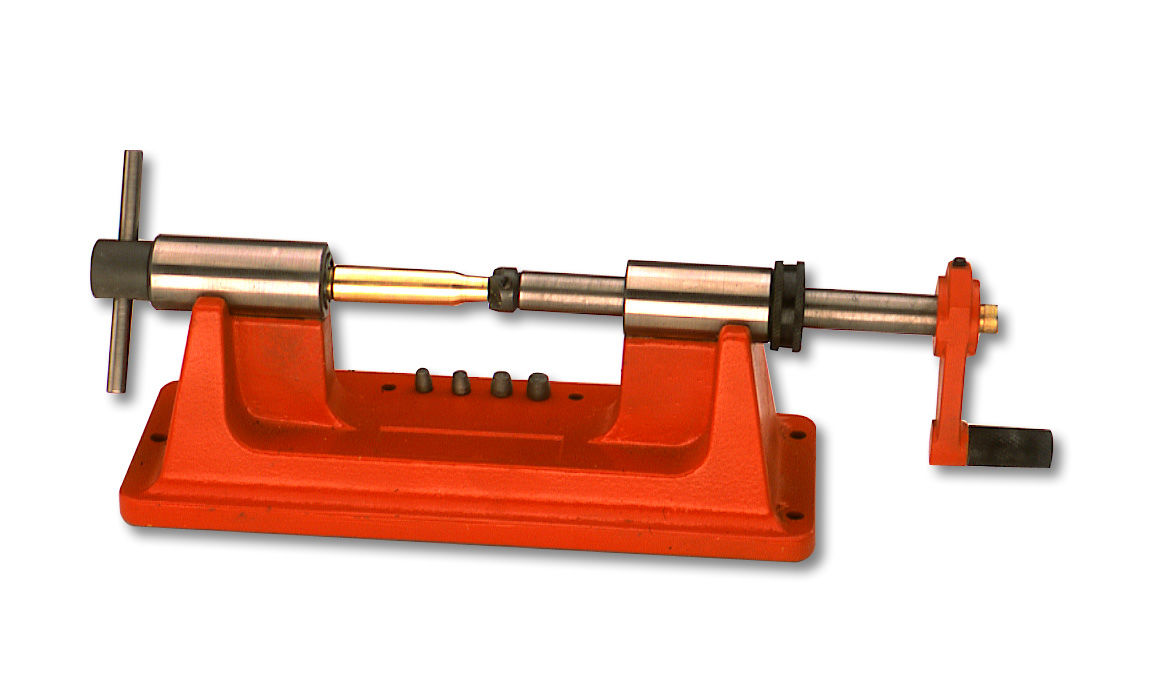

EL TORN
És un cilindre o corró que roda al voltant del seu eix amb una corda o cable enrotllat al qual es lliguen els cossos que es volen moure.

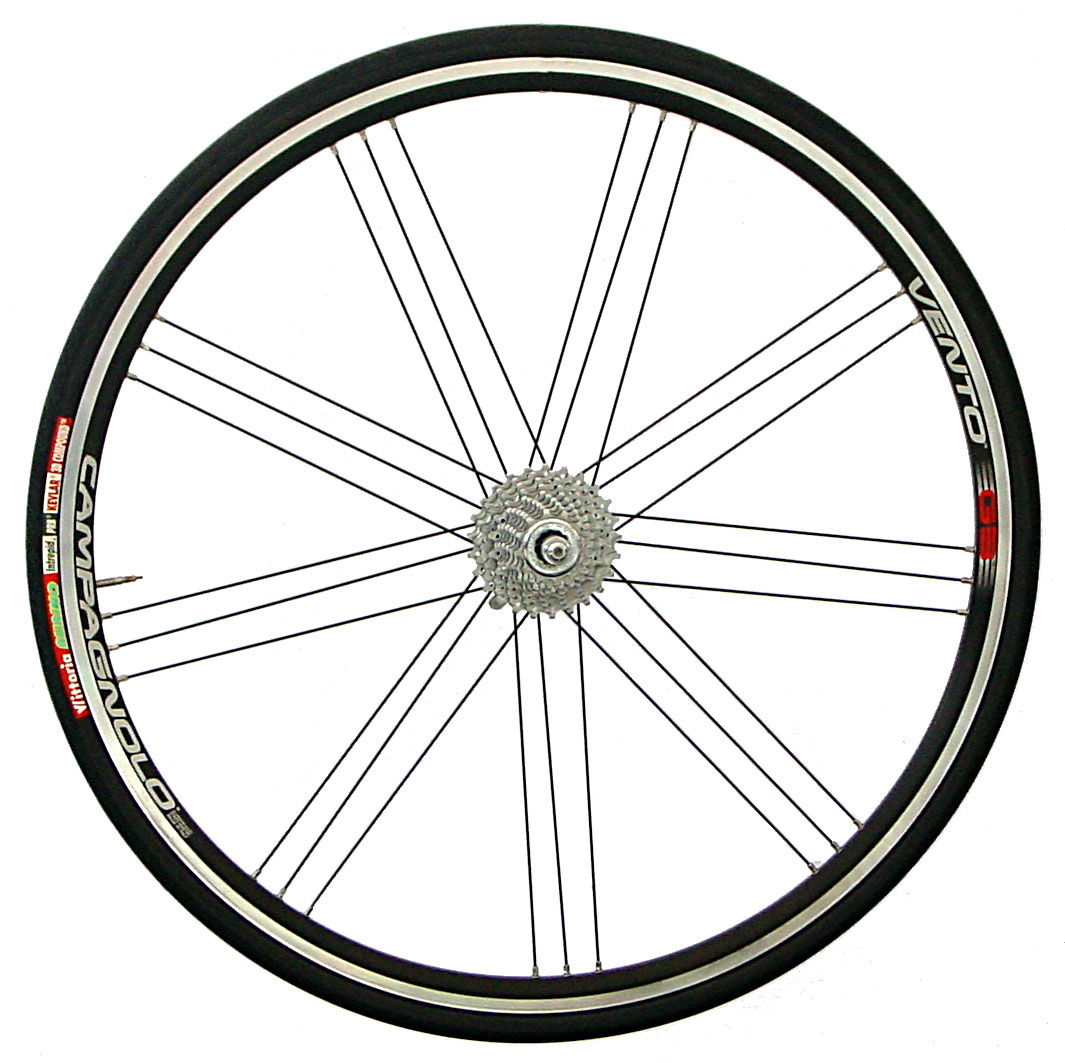

LA RODA
És una peça cicular que pot girar sobre un eix que passa pel seu sentre
