is a set of four interconnected
cavities (ventricles) in the brain,
where the cerebrospinal fluid (CSF) is
produced. Within each ventricle is a
region of choroid plexus.
Formation of CSF
The cerebrospinal fluid is produced
by the choroid plexus of the
ventricles, which is a network of
capillaries with fenestrated
endothelial cells and specialized
ependymal cells.

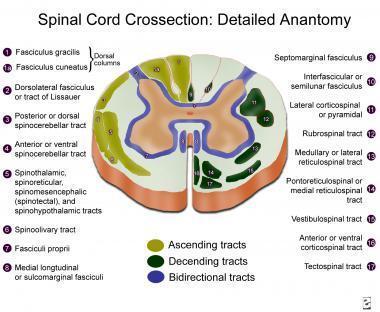

Ascending & descending tracts
Motor Pathway
Pyramidal System
Corticospinal tract
Voluntary, skilled,
discrete movements.
UMN
Neurons of the cerebral cortex in motor areas
(pyramidal cells) giving descending fibers →
converge in corona radiate →pass through
posterior limb of internal capsule →fibers
descend through basis pedunculi of the
midbrain →then through pyramids of medulla.
LMN
Anterior
horn of the
spinal cord

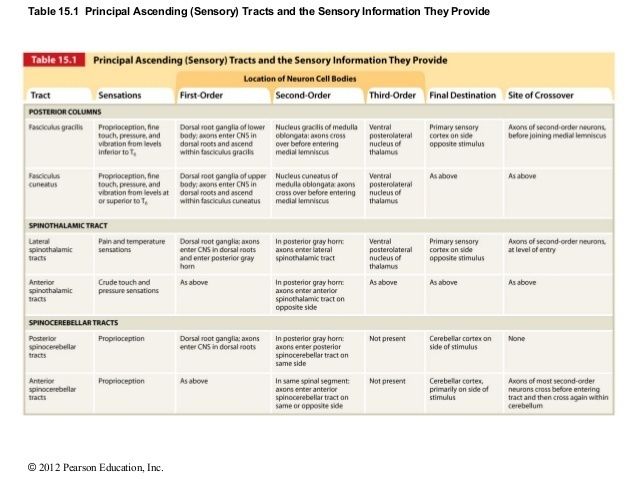

Sensory Pathways
Posterior
white column
Posterior (dorsal)
spinocerebellar
Anterior (ventral)
spinocerebellar
Lateral Spinothalamic
Anterior Spinothalamic

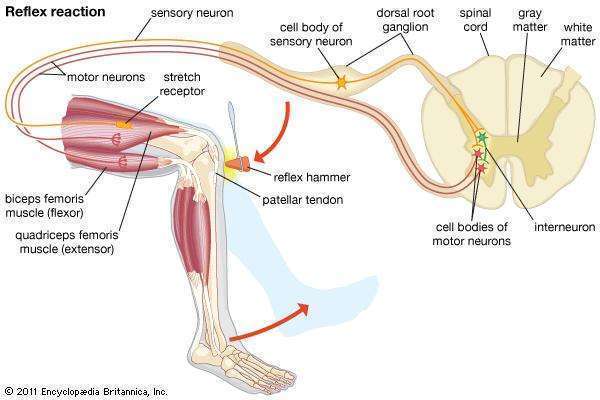

Reflexes
A reflex is an
involuntary and
instantaneous
movement in
response to a
stimulus.
Checks deep tendon reflexes: biceps, triceps, supinator, fingers.
Joint position
Vibration sense
Light touch &
pin prick
Coordination assessment
Neurological
Examination Of The
Lower Limb
Assesses gait
muscle tone
Romberg’s test
Checks power
Checks deep tendon reflexes: knee, ankle, planter reflex.
Joint position
Vibration sense
Light touch &
pin prick
Coordination assessment
Normal Gait
major criteria
essential to
walking
Equilibrium
Locomotion
Musculoskeletal Integrity
Neurological Control

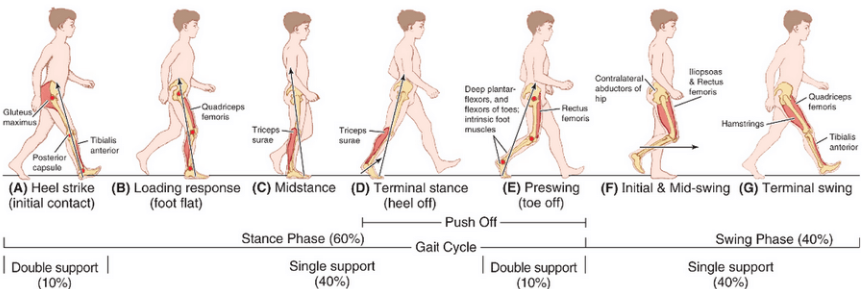

gait cycle
Pathophysiology
of syringomyelia
Syrinx acts as intramedullary mass. Redirected
CSF fills expanding central canal. Continual
movement of CSF builds pressure. Syrinx widens
& compresses nerve fibers. Resulting in pain,
weakness, and stiffness in back, shoulders, arms,
or legs. Each patient experiences a different
combination of symptoms depending on where
in spinal cord syrinx forms and how far it
expands.
Signs and Symptoms
of syringomyelia
Loss of pain
and
temperature
sensation
Muscle wasting
and loss of reflexes
Ptosis, miosis, and
anhidrosis
Investigations
MRI
Myelogram
Management
of
syringomyelia
Asymptomatic syringomyelia with
a small syrinx cavity and with no
clear etiology is best managed
with watchful waiting and
imaging examination.
