GCSE GRAPHIC PRODUCTS
  1. MATERIALS
    1. PLASTICS
      1. THERMOPLASTICS
        1. Bio Plastic
          1. Biodegradable, food packaging
          2. Acrylic
            1. Stiff but brittle, Point of sale stands
            2. Polythylene Terephalate (PET)
              1. Tough and Lightweight, Fizzy drinks bottles
              2. Expanded Polystyrene Styrofoam
                1. Very light, impact absorbing, Protective packaging
                2. Polyvinyl Chloride
                  1. Tough, Restricts scratches, Blister Packs, Game peices
                  2. Polypropylene
                    1. Lightweight and rigid, Food packaging, laminating paper and board
                    2. Can be heated and shaped many times
                      1. SHAPING AND FORMING

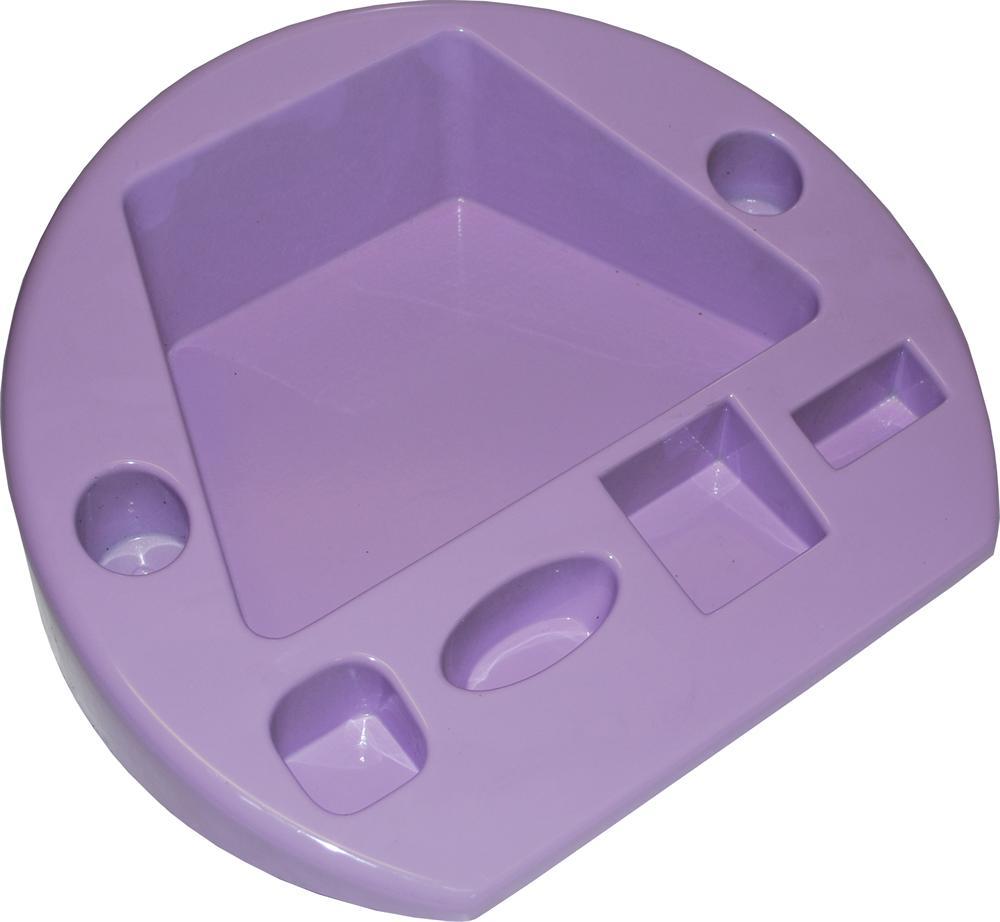

                        1. VACUUM FORMING

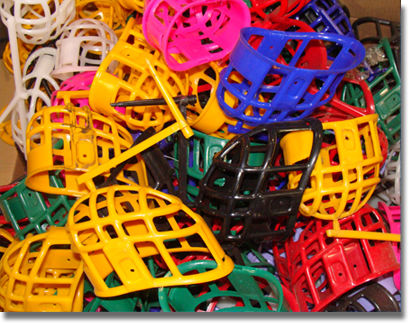

                          1. INJECTION MOULDING

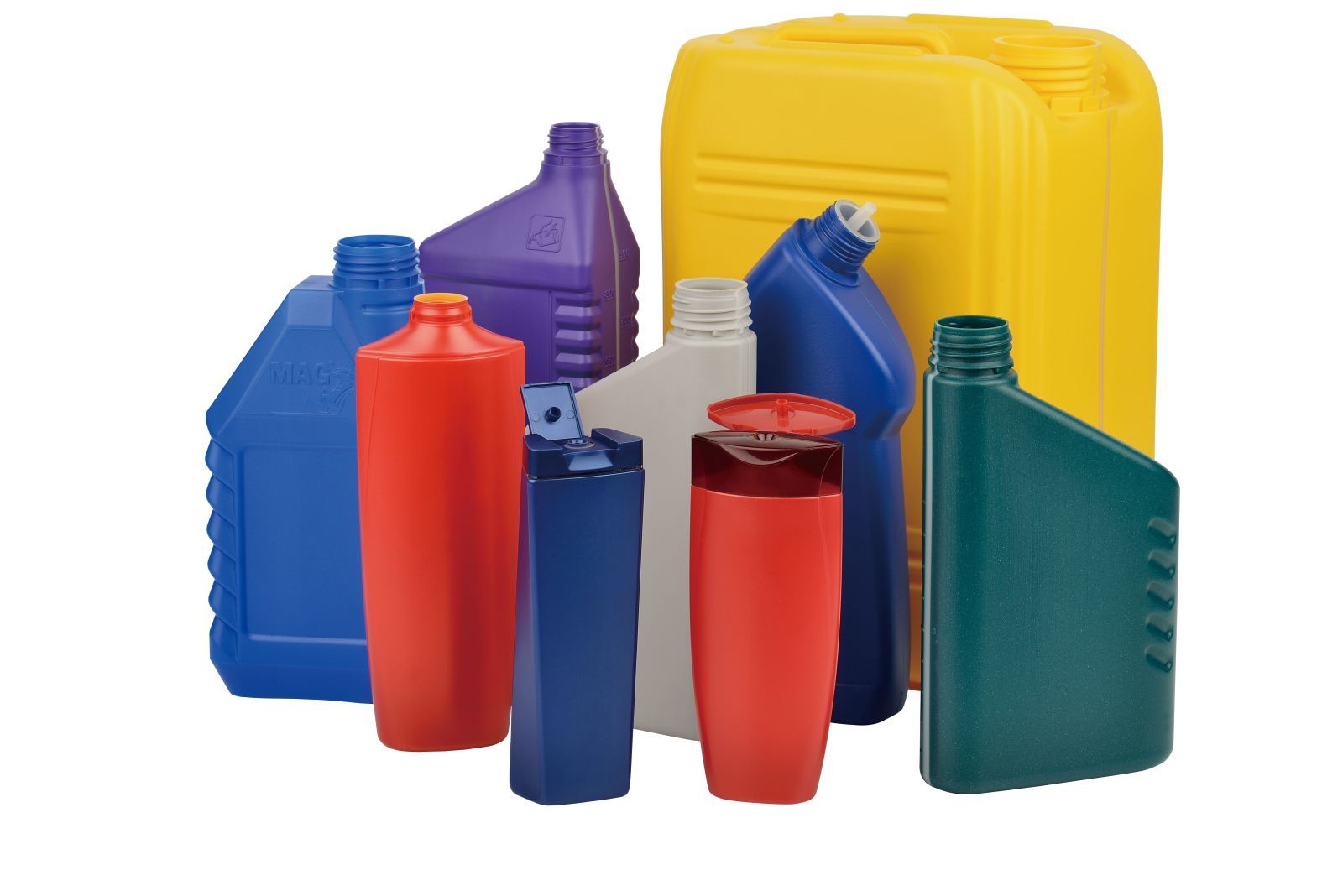

                            1. BLOW MOULDING
                              1. LINE BENDING
                            2. THERMOSET PLASTICS
                              1. Can only be heated and shaped once
                                1. Epoxy Resin
                                  1. Good electrical conductor, Casting and encapsulation and adhesive
                                  2. Melamine Formaldehyde
                                    1. Stiff and strong, Laminates for work surfaces, Electrical Insulation
                                    2. Polyester Resin
                                      1. Hard but brittle, bonding of other materials
                                      2. Urea Formaldehyde
                                        1. Brittle but stiff, Good electrical insulator, Electrical fittings, handles and adhesives
                                    3. PAPER AND BOARD
                                      1. LAYOUT PAPER
                                        1. Thin and slightly translucent. Sketches and tracing
                                        2. CARD
                                          1. Rigid surface, easily printable. Photos, presentations
                                          2. CARTONBOARD
                                            1. Boards made from different layers and materials, many different coatings. Packaging
                                            2. MOUNT BOARD
                                              1. Thick rigid card

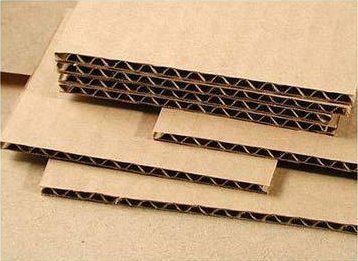

                                              2. CORRUGATED CARD
                                                1. Strong and lightweight. Protective packaging, Point of Sale Stands

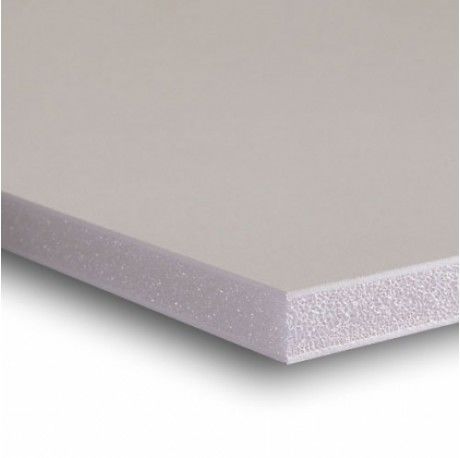

                                                2. FOAM BOARD
                                                  1. A sandwich of foam and card. Point of sale stands, Presentation Boards
                                                  2. SPIRAL WOUND TUBING
                                                    1. High stregnth, 3d printable surface. Packaging
                                                3. KEY DESIGNERS
                                                  1. Harry Beck designed the London Underground Map of 1933
                                                    1. Alberto Alessi
                                                      1. John Kinnear and Margaret Calvert
                                                        1. Robert
