positively charged subatomic
particle; found in nucleus; has
mass
Neutron
Isotope- two or more forms of the
same element that contain equal
numbers of protons but different
numbers of neutrons
neutrally charged subatomic particle; found in nucleus;
has mass
Electrons
Ion- a net electric charge due to the loss or
gain of one or more electrons.
negatively charged
subatomic particle; found in
electron cloud; no mass
BOHR
MODEL OF
HYDROGEN
What is it?
Bohr Model- a basic
model of an atom to
show placement of
protons, neutrons and
electrons
Bohr Models are unreliable
because they are 2D reps of a 3D
object, and electron are too small
and fast to predict the actual
location
How to read ?
As electrons jump from excited state to
a ground state, they release energy in
waves
Ground State- lowest energy level
Excited state-
energized electron
Energy released falls under electromagnetic spectrum

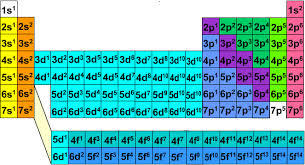

ELECTRON
CONFIGURATION
Read from left to right;
helps to locate elements,
like a road map or grid
coordinates
Key- #: row;
Letter: block;
Superscript: # of
elements over
Example- Electron Configuration
of Iron (Fe): 1s^2, 2s^2, 2p^6, 3s^2,
3p^6, 4s^2, 3d^6
Noble Gas Notation
Start from last Noble Gas passed as a way to shorten it
Example of Selenium (Sn): [Kr] 5s^2, 4d^10, 5p^2

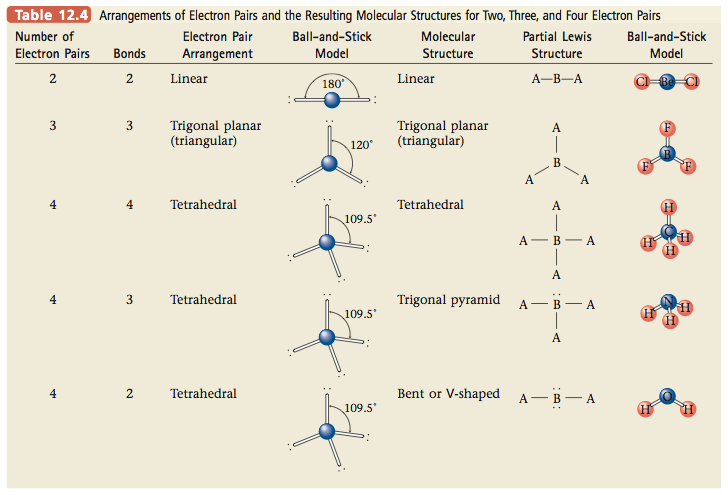

VSEPR
What is it?
Valence Shell Electron Pair Repulsion Theory
3-D arrangement of molecules in an atom
The repulsion of valence electrons cause electrons
to configure as far apart as possible
Determined by the number of pairs bonded to the
central atom and the amount of LONE PAIRS
Lone pairs- extra electrons on the central atom that
does not bond with another atom
Polarity- uneven pull on the central
atom resulting in a partial positive
and negative charge

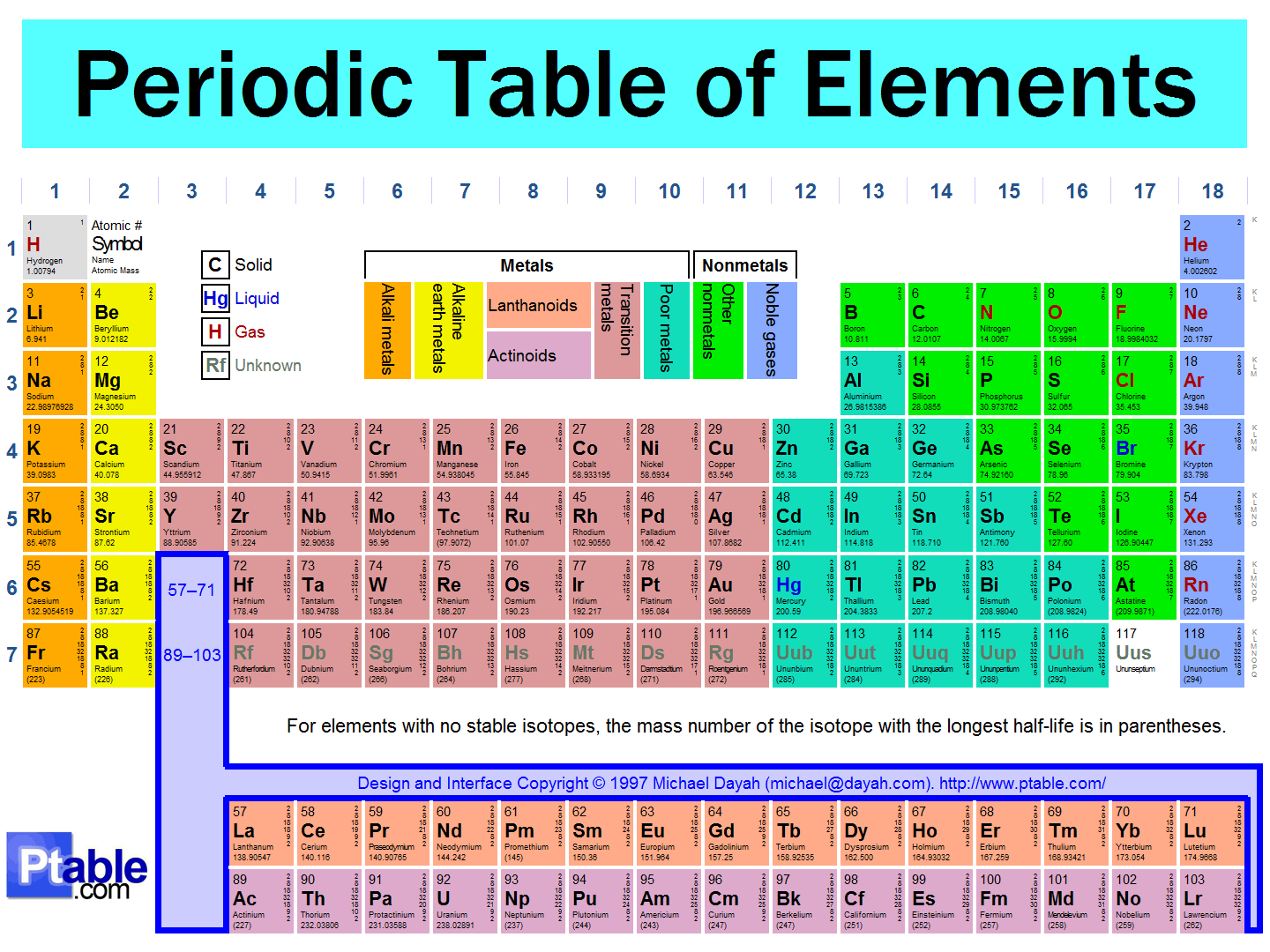

PERIODIC TABLE
How to read?
Groups- vertical columns (18)
Group 1- Alkali Metals
Group 2- Alkaline Earth Metals
Group Three- Transition Metals (inner/outer/post)
Group 4- Metalloids
Group 5- Non Metals
Group 6- Halogens
Group 8- Noble Gases
Periods- horizontal rows (7)
Periodic Trends
Atomic Radii
the radius of an atom from the nucleus to the edge of electron cloud
Increases from right to left; top to bottom
Electronegativity
describes the ability of an atom to attract
new electrons to make new elements
increases from left to right; bottom to top
Ionization Energy
describes the amount of energy
required to remove an electron from
the atom
increases from left to right; bottom to top
Electron Affinity
applies to noble gases
neutral atom's likelihood to gain an electron
increases from left to right; bottom to top
Oxidation Numbers
represents the number of electrons lost (or
gained, if the number is negative) by an atom
of that element in the compound.
1+, 2+, 3+, +/- 4, 3-, 2-, 1-, 0
BONDING
Chemical Bonding- mutual electrical attraction
between nuclei and valence electrons of
different atoms
Covalent Bond
Between two non metals
low melting point; low boiling point
Ex: Carbon Dioxide
Ionic Bond
between a metal and
nonmetal; across staircase
high melting and boiling point
Ex: NaCl (salt)
Metallic
between two metals; sea of electrons
High melting and boiling point
Octet Rule- bonds increase stability;
must have 8 electrons except boron and
beryllium and hydrogen
Single bond<double bond< triple bond
Lewis Structures
show the bonding between atoms of a molecule
and the lone pairs of electrons
NAMING
REACTION
TYPES
Synthesis
Add/combine
A + B --> AB
Decomposition
break down
AB --> A + B
Single Replacemnt
A + BC --> AC + B
Use Activity Series-
on RT, elements can
replace elements
below it or less
reactive than it
Double Replacement
swap
AB + CD --> AD+ CB
Combustion
O2= reactant
Products are ALWAYS CO2 and H2O
BALANCING
EQUATIONS
Steps: 1. Draw line at yield sign 2. write out
all ATOMS present on both sides 3. Count
number for each side 4. Apply coefficients
to even out score (oxygen last) 5. Check
answer 6. Write ratio
Coefficients- numbers at the front of
each atom
Law of Conservation of Mass- matter
cannot be created, nor destroyed in a
chemical reaction
Predicting Products- writing the product
based off of the type of reaction; girls and
boys are always paired
STOICHIOMETRY
Calculation of certain quantities of
reactions in a chemical reaction
Types
1. Moles to
Moles
2. Moles to Mass
3. Mass to Moles
4. Grams to Grams
Dimensional Analysis- step by step manner used to
solve any problem using units and numbers and
times/divide method
