Dual Three-Phase Salient-Pole Synchronous Motor

Description

Time-Stepping Finite-Element Analysis of a Dual Three-Phase Salient-Pole Synchronous Motor under Voltage-Source Supply C. Bassi and A. Tessarolo http://ieeexplore.ieee.org/xpl/articleDetails.jsp?arnumber=5637640&newsearch=true&queryText=Time-stepping%20finite-element%20analysis%20of%20a%20dual%20three-phase%20salient-%20pole%20synchronous%20motor%20under%20voltage-%20source%20supply%E2%80%9D
Javii Solano
Mind Map by Javii Solano, updated more than 1 year ago
Javii Solano
Created by Javii Solano over 8 years ago
20
0
0

Resource summary

Dual Three-Phase Salient-Pole Synchronous Motor
  1. USED IN
    1. high-power electric drives
      1. power rating
        1. performance
          1. reliability enhancement
            1. PWM-fed 22-MW salient-pole synchronous motor with dual three-phase stator arrangement, under voltage-source supply, conceived for electric ship propulsion
          2. SUPPLIED BY
            1. voltage-source PWM inverters
            2. Possible drawbacks
              1. high-frequency circulation currents
                1. motor phases
                  1. PWM switching
                2. low-frequency current harmonics

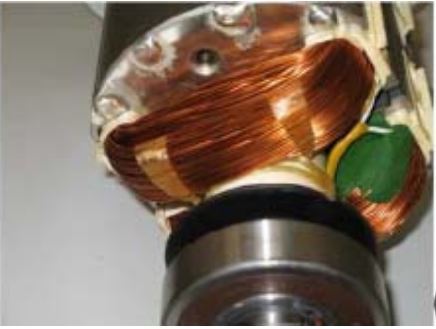

                  1. synchronous machines
                    1. internally generated

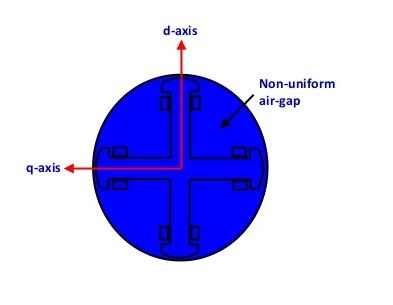

                      1. rotor saliency
                        1. nonuniform air-gap
                  2. behavior studied through
                    1. Time-stepping Finite-Element Analysis
                      1. high internally-generated circulating currents
                        1. 5th harmonic component
                          1. assessed
                            1. real synchronous machine

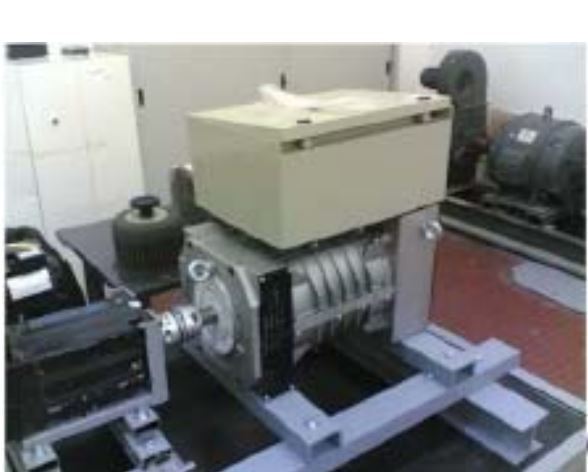

                              1. laboratory prototype multiphase synchronous machines
