Circuits
Is a path along with electric charge can flow
Open
Is a not complete circuit, the electric charges cannot flow, so the light stay off
Close
Is a complete circuit, the electric charges can flow through it to light up the bulb

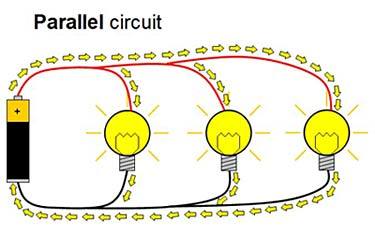

Parallel
Electric charges can flow through both the loop and the bottom loop: If one part breaks only that part stop working

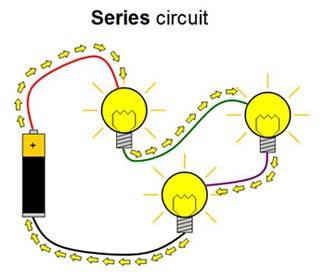

Series
Electric charges must flow a single part: If one light bulb burns all the lights go out because the circuit is broken
