Energy

Description

A-Level Chemistry (A2 topics) Mind Map on Energy, created by jacob gray on 10/01/2016.
jacob gray
Mind Map by jacob gray, updated more than 1 year ago
jacob gray
Created by jacob gray almost 9 years ago
8
0

Resource summary

Energy
  1. Enthalpy
    1. Enthalpy change of formation, ΔHF

      Annotations:

      • The enthalpy change that occurs when one mole of a compound is formed from its constituent elements in their standard states under standard conditions e.g. K(s) + 1/2Cl2(g) -> KCl(s)
      • Usually exothermic for an ionic compound.
      1. Enthalpy change of atomisation, ΔHat

        Annotations:

        • The enthalpy change that takes place when one mole of gaseous atoms forms from the element in its standard state E.g. K(s) -> K(g) or 1/2Cl2(g) -> Cl(g)
        • Always exothermic as a bond is being broken
        1. First ionisation energy, ΔHI

          Annotations:

          • The enthalpy change the accompanies the removal of one electron from each atom to form one mole of gaseous 1+ ions  E.g. Ca(g) -> Ca+(g) + e^-
          • Always endothermic as the electron being lost has to overcome attraction from the nucleus
          1. First electron affinity, ΔHEA

            Annotations:

            • The enthalpy change that accompanies the addition of an electron to one mole of gaseous atoms to form one mole of gaseous 1- ions E.g. Cl(g) + e^- -> Cl^-(g)
            • Always exothermic as the electron is attracted into the outer shell of an atom by the nucleus
            1. Hess's law

              Annotations:

              • If a reaction can take place by more than one route and the initial and final conditions are the same, the total enthalpy change is the same for each route,
              1. Lattice enthalpy, ΔHLE

                Annotations:

                • The energy change that accompanies the formation of one mole of an ionic compound from its gaseous elements under standard conditions e.g. 2K^+(g) + S^2-(g) -> K2S(s)
                • This is an exothermic change Indicates the strength of an ionic lattice, higher the lattice enthalpy the stronger the bond Covalent structures do not have a lattice enthalpy as their are no ions in the structure. Impossible to measure directly as you cant form one mole of a ionic lattice in gaseous form
                1. Enthalpy change of neutralisation, ΔHneut

                  Annotations:

                  • The energy change that accompanies the neutralisation of an aqueous acid by an aqueous base to form one mole of H2O(l) under standard conditions Ionic equation = HCl(aq) + NaOH(aq) -> NaCl(aq) + H2O(l)
                  1. Enthalpy change of solution

                    Annotations:

                    • The enthalpy change that takes place  when one mole of a compound is completely dissolved in water under standard conditions. E.g. KCl(s) +aq -> K^+(aq) + Cl^-(aq)
                    1. Enthalpy change of hydration, ΔHhyd

                      Annotations:

                      • The enthalpy change that takes place when one mole of isolated gaseous ions is dissolved in water forming one mole of aqueous ions under standard conditions e.g. K+(g) + aq -> K+(aq)
                      1. The effect of ionic charge and radius on lattice enthalpy and enthalpy change of hydration
                        1. Lattice enthalpy
                          1. Ionic radius
                            1. As ionic radius increases, the attraction between the ions is weaker and the lattice enthalpy becomes less exothermic
                              1. The bonds are weaker and therefore the boiling and melting points are lower
                              2. For a smaller radius, there is greater attraction from a larger charge density
                              3. Ionic charge
                                1. The stronger the charge, the more exothermic the lattice enthalpy
                              4. Enthalpy change of hydration
                                1. Ionic radius
                                  1. As smaller molecules exert more attraction on water molecules releasing more energy, as the radius increases, the reaction becomes less exothermic
                                  2. Ionic charge
                                    1. As the charge increases, the radius decreases so the attraction increases, making the enthalpy change more exothermic
                              5. Born-Haber
                                1. Entropy
                                  1. Entropy, S

                                    Annotations:

                                    • A quantitiative measure of disorder in a system
                                    • As molecules are always moving, S is always positive
                                    1. Calculating the entropy change of a reaction, ΔS

                                      Annotations:

                                      • ∑S(products) - ∑S(reactants)
                                      1. What can it can help us explain
                                        1. Gas expanding in a room
                                          1. How things dissolve
                                            1. Heat dispursing
                                        2. Changing entropy

                                          Annotations:

                                          • Entropy always increases when particles become more disordered
                                          • The entropy of a pure substance increases with increasing temperature
                                          1. Changing state
                                            1. Solid/liquid

                                              Annotations:

                                              • Perfect crystals have 0K entropy. as they heat up and change to a liquid, entropy increases as the particles become more randomly placed.
                                              1. Liquid/gas

                                                Annotations:

                                                • When water evaporates, its entropy changes from 70 to 189
                                              2. More moles of gas

                                                Annotations:

                                                • If a reaction  has more moles of gas on one side than the other, the more moles of gas will have the highest entropy, shown by giving the reaction. e.g. 3O2-> 2O3 is a decrease in entropy
                                                1. Dissolving

                                                  Annotations:

                                                  • When something dissolves the entropy increases.
                                              3. Free energy
                                                1. Feasibility of reaction

                                                  Annotations:

                                                  • A reaction is feasible if ΔG has a negative value.
                                                  1. Free energy change, ΔG

                                                    Annotations:

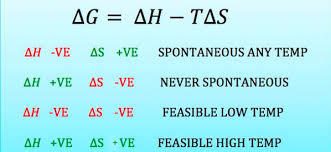

                                                    • The balance between enthalpy, entropy and temperature for a process ΔG=ΔH-TΔS ΔH is the enthalpy change to the surroundings ΔS is the entropy change in the system T is the temperature in Kelvin (degrees C + 273)
                                                  2. Redox
                                                    1. Cells and half cells
                                                      1. Cell potentials
                                                        1. Feasibility reactions
                                                          1. Storage and fuel cells
                                                            1. Acid hydrogen cell
                                                              1. Alkaline hydrogen cell
                                                              2. Hydrogen for fuel
                                                                Show full summary Hide full summary
