Physics - P3 - AQA - GCSE - The Motor Effect

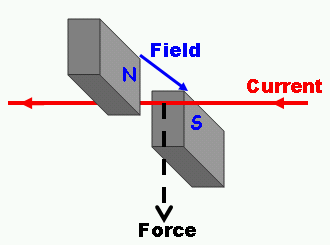

The force on a current-carrying wire in a magnetic field can make the wire move.
Affected by:
The strength of the magnet
The size of the current (amps) in the wire
The angle between the current and the magnetic field lines
Force is greatest when the wire is perpendicular to the magnetic field lines
Force is zero when the wire is parallel to the magnetic field lines
Electric Motor

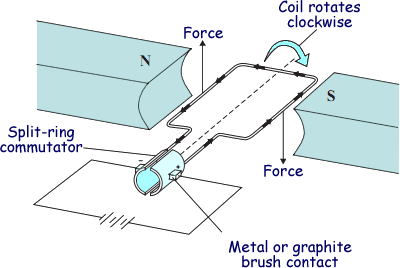

Split-ring commutator is the device that enables the motor to spin.
The Fleming Effect
Left hand
