Network
Topologies
- Bus
- Pros
- Cost - effective
- Less cabling required
- Less cabling required
- Quick to set up
- Easy to implement and
- Cost - effective
- Cons
- Difficult to troubleshoot
- Performance degrade as
additions computers are added
- If there is a problem with
the connection, the entire
network goes down
- Low security
- Data collisions are more likely
- Proper termination is required
- Difficult to troubleshoot
- Pros

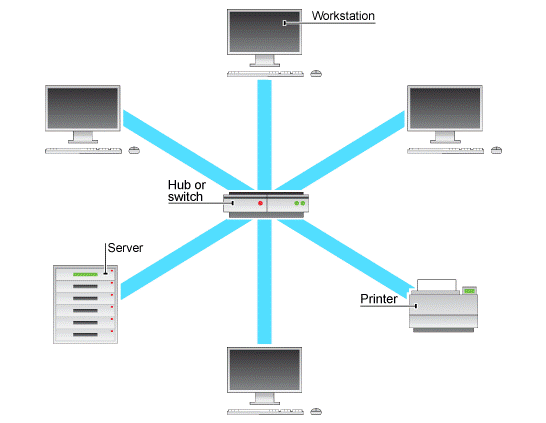

- Star
- Special Hardware
Involved
- Hub
- Hub
- Pros
- Fast network speed
- Easy to set up
- Possible to add more
computer systems without
taking the network down
- Any non-centralised failure
will have very little effect
on the network
- Minimal network collisions
- Better security
- Fast network speed
- Cons
- Expensive to install
- Extra hardware to install
- Expensive to install
- Special Hardware
Involved

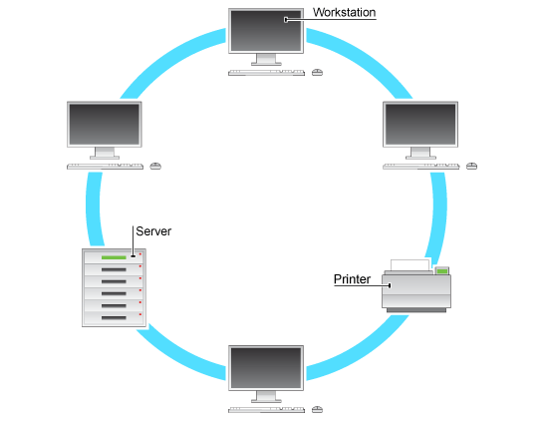

- Ring
- Pros
- Data is quickly transferred
without a bottleneck
- Consistent transfer speeeds
- Transmission of data is simple
- Adding additional nodes has very
little impact on the bandwith
- Prevents network collisions
- Data is quickly transferred
without a bottleneck
- Cons
- Difficult to troubleshoot
- To add another node,
the network must be
shut down temporarily
- If any of the CS's fail, the ring
is broken and data cannot be
transferred efficiently
- If there is a problem with the
connection, the entire network
goes down
- Difficult to troubleshoot
- Pros
