The link reaction

Description

A Levels Biology A2 revision Mind Map on The link reaction, created by lucy.wright73 on 29/01/2014.
lucy.wright73
Mind Map by lucy.wright73, updated more than 1 year ago
lucy.wright73
Created by lucy.wright73 almost 11 years ago
60
1

Resource summary

The link reaction
  1. Converts pyruvate (from glycolysis) to acetate. NAD is reduced.
    1. Decarboxylation and dehydrogenation are enzyme catalysed reactions (pyruvate is substrate)
      1. Pyruvate dehydrogenase removes H atoms; pyruvate decarboxylase removes a carboxyl group
        1. Coenzyme NAD accepts the H atoms; coenzyme A (CoA) accepts the acetate > acetyl CoA
      2. Takes place in the matrix, so pyruvate has to be transported into mitochondria from the cytoplasm

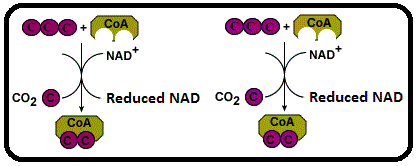

        1. 2 pyruvate + 2 NAD+ (oxidised) + 2 CoA ------> 2 CO2 + 2 reduced NAD + 2 acetyl CoA
          1. No ATP produced, but each NADH carrying 2 H atoms - will take to inner mitochondrial membrane where H atoms used to produce ATP during oxidative phosphorylation
            1. 2 molecules of everything because two molecules of pyruvate derived from each glucose molecule
            2. Pyruvate is 3C, acetate is 2C, acetyl CoA is 2C
