Photosynthesis
Description
(Biology) Mind Map on Photosynthesis, created by Lydia Seeley on 18/02/2014.
No tags specified
biology
edexcel igcse biology
biology
Mind Map by
Lydia Seeley
, updated more than 1 year ago
More
Less
Created by
Lydia Seeley
almost 11 years ago
48
4
1
Resource summary
Photosynthesis
Carbon Dioxide + Water => Glucose + Oxygen
6CO2 + 6H2O => C6H12O6 + 6O2
Sunlight is absorbed by the chlorophyll in the leaves
Water moves into plant by osmosis through the root hair cells
Osmosis is the net movement of water molecules from a more concentrated area to a less concentrated area through a partially permeable membrane
TRANSPIRATION
Caused by evaporation and diffusion
Affected by; light intensity, temperature, wind speed and humidity
The process carried out by plants to produce food (glucose)
Rate of Photosynthesis is affected by the light intensity, temperature and amount of CO2
Experiments:
Light intensity- use a lamp and record the number of bubbles by plant in beaker
Carbon Dioxide- in a sealed bell jar with soda lime in it with a light shining in. Test for starch
Temperature- the enzymes will be denatured. Test for starch
The test for starch will tell you whether or not photosynthesis is taking place
1. Boil it. 2. Boiling tube with Ethanol. 3. Rinse and add Iodine solution
Starch present - black/blue colour
Nutrients required by plants
Nitrates to produce proteins for cell growth
Phosphates for making DNA & for respiration and growth
Potassium helps enzymes needed for photosynthesis and respiration
Magnesium (a tiny bit) for making chlorophyll
Media attachments

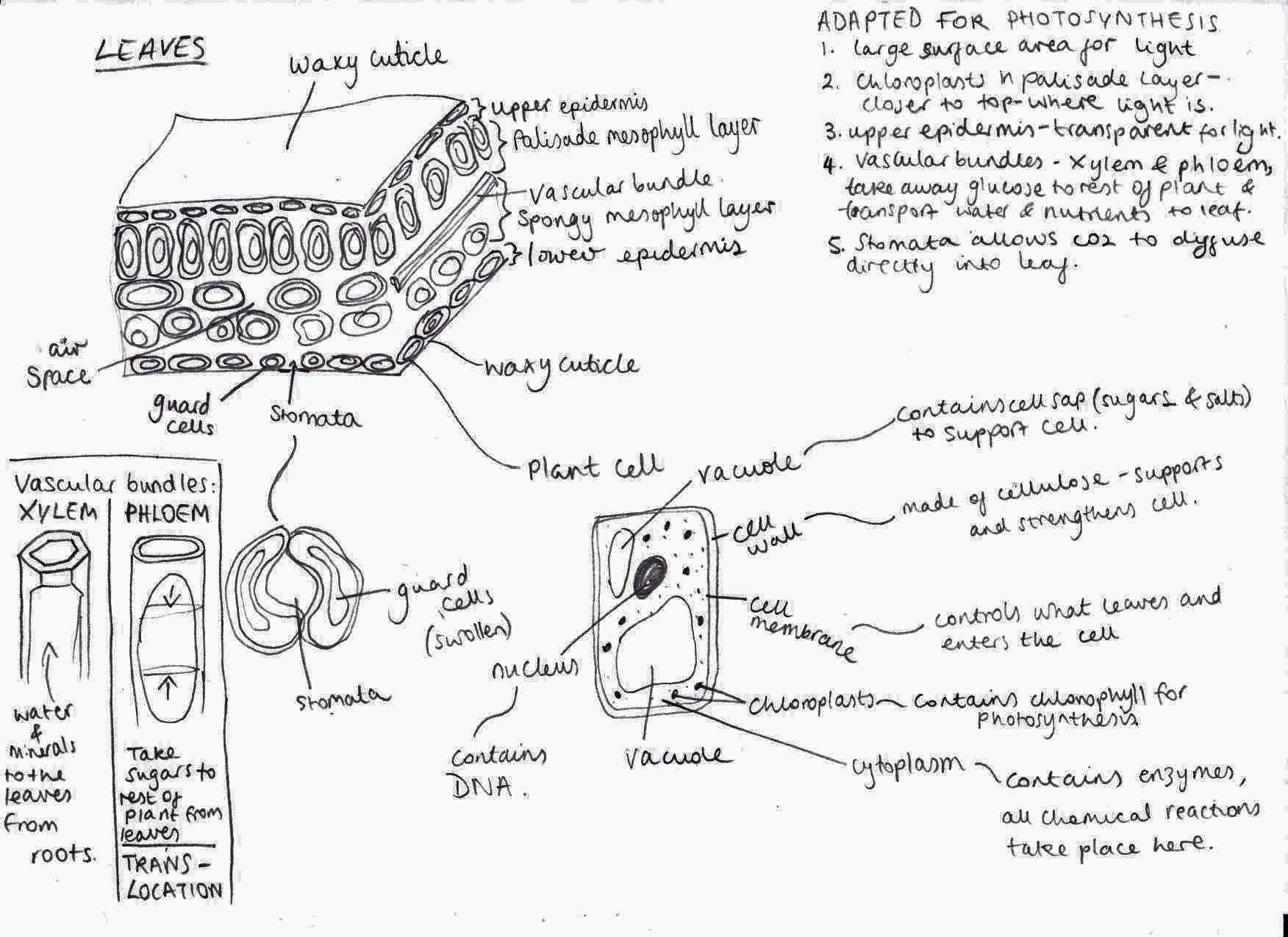

Biology_-_photosynthesis_001 (image/jpg)

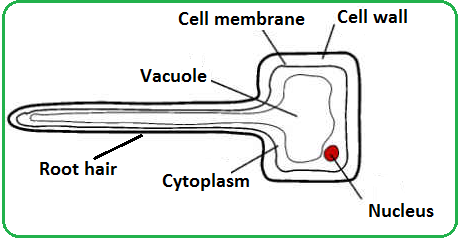

root_hair_cell (image/png)
