Bone Fractures

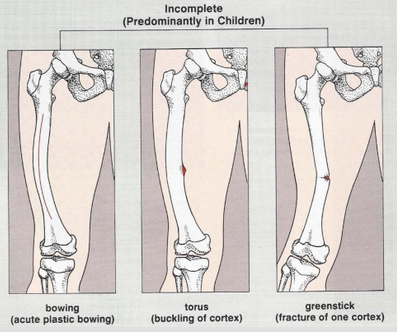

INCOMPLETE (predominantly in children- bones are more bendable)
bowing- acute plastic bowing (rickets)
torus- buckling of cortex
greenstick- fractured bone on one side with other side intact

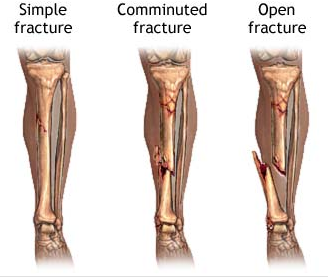

COMPLETE
simple
comminuted- fragmented pieces of bone
open- bone protrudes through skin

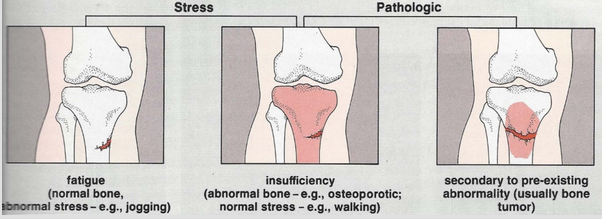

SPECIAL TYPES
FATIGUE "march"- constant stress (e.g. jogging)
INSUFFICIENCY- abnormal bone and normal stress
pathologic- has lytic area (loss of tissue)

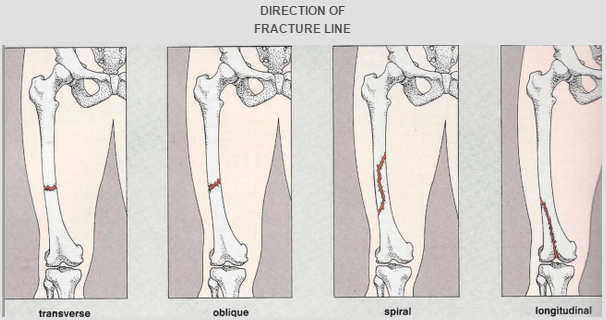

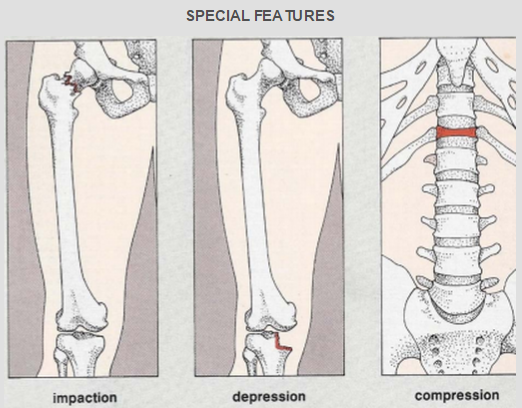

DIRECTION AND OTHER FEATURES
IMPACTED fracture- bone breaks into multiple fragments which are driven into each other
DEPRESSION fracture- fragment is depressed below the normal surface

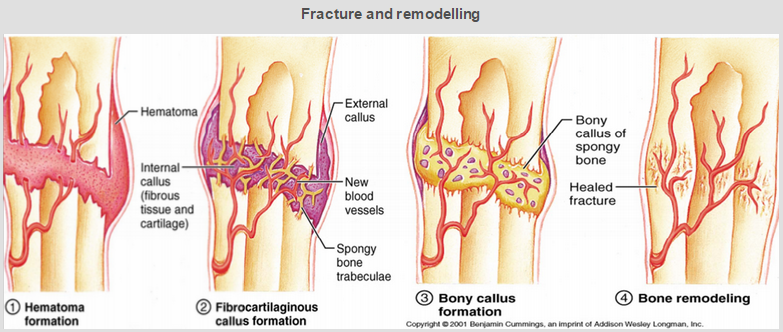

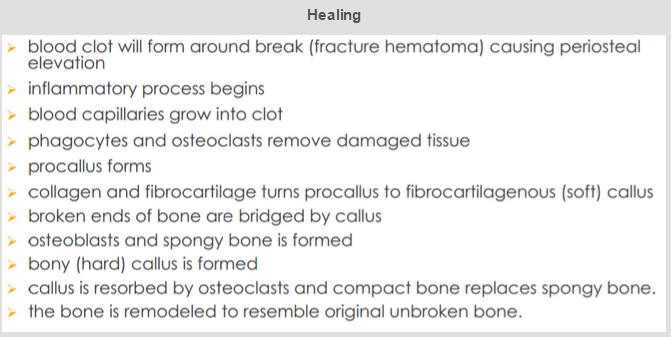

PROCESS OF HEALING
Fracture causes bleeding > elevates the periosteum. Periosteum is pushed out > procallus formation forms a bridge > callus is formed and reabsorbed
PERIOSTEAL REACTION
radiological observation with no clinical equivalent– patient may have bone pain and tenderness
lifting of periosteum stimulates osteoclasts to form new bone
caused by tumour, pus, haemorrhage, increased vascularity or serum

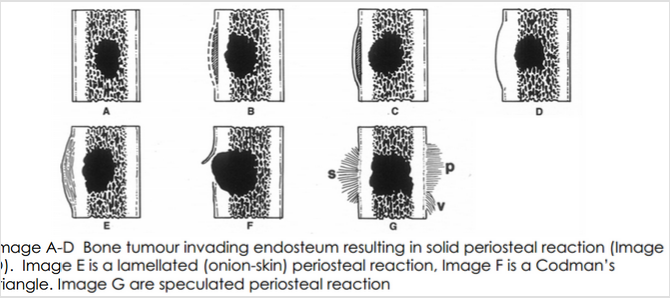

Types of periosteal reaction due to bone tumour
E: "onion skin", solid periosteal reaction in layers, caused by aggressive tumour (malignant)
E-G caused by aggressive tumours
