B2: Genetic Engineering

Description

GCSE Biology (B2: The Components of Life) Mind Map on B2: Genetic Engineering, created by Sarah Knox on 22/02/2017.
Sarah Knox
Mind Map by Sarah Knox, updated more than 1 year ago
Sarah Knox
Created by Sarah Knox almost 8 years ago
122
1

Resource summary

B2: Genetic Engineering

Annotations:

  • = transferring a gene from one organism to another.

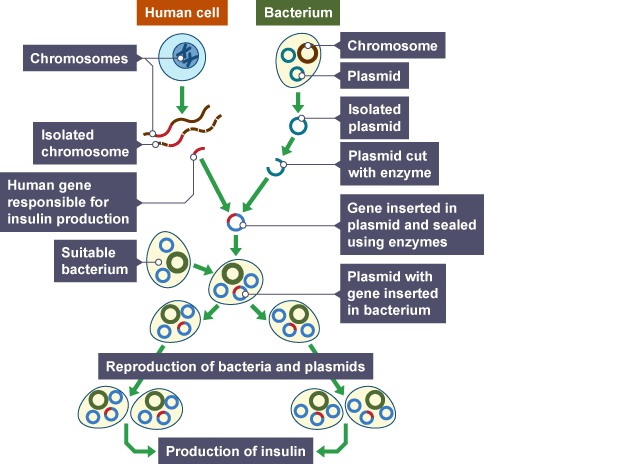

  1. 1: Modification of bacteria to make human insulin

    Annotations:

    • 1) Extract a bacterial plasmid using enzymes.  2) Extract human insulin gene from a human cell. 3) Insert insulin into plasmid.  4) Put plasmid back in bacterial cell.  5) Bacteria multiply and produce insulin.
    1. Pros

      Annotations:

      • Cheap Vegan friendly
      1. Cons

        Annotations:

        • Gene mutations Contamination
      2. 2: Herbicide Resistance

        Annotations:

        • Vegetable crops are given gene to make them resistant to weed killer.
        1. Pros

          Annotations:

          • More crop yield
          1. Cons

            Annotations:

            • Loss of biodiversity Risk of cross pollination Unknown health effects
          2. 3: Golden Rice

            Annotations:

            • Normal rice plant has 2 extra genes inserted to produce beta-carotene. Beta-carotene is required for the production of Vitamin A.
            1. Pros

              Annotations:

              • Prevents Vitamin A deficiency in poor countries.  Because of this there is a lower chance of blindness and poor immune systems.
              1. Cons

                Annotations:

                • Cross pollination Beta carotene levels too low to be effective Too expensive
