Force: Moments of a Force & Equilibrium

Description

This note outlines moments, couples, torques and levers. It also provides an overview of the two conditions that must be satisfied for a body to be in equilibrium.
tatemae.honne
Note by tatemae.honne, updated more than 1 year ago More Less
alex.examtime9373
Created by alex.examtime9373 almost 11 years ago
tatemae.honne
Copied by tatemae.honne almost 11 years ago
538
5

Resource summary

Page 1

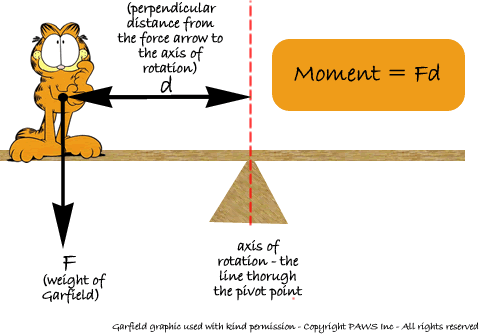

Moment of a Force Force multiplied by the perpendicular distance to the fulcrum M = Fd Vector quantity Unit = Newton metre (Nm) Fulcrum is a fixed point about which a rigid body is free to rotate The moment of a force can only be determined with reference to an axis

Lever A rigid body that is free to rotate about a fixed axis We most often deal with levers that pivot on a point, which is called the fulcrum Levers convert a small force applied over a long distance to a large force applied over a small distance Examples: Door handle Forearm pivots at the elbow

Couple A pair of equal and opposite forces whose lines of action do not coincide When a couple acts on a body, the resultant force is zero, but it has a turning effect Example: the forces exerted by one's hand on a screw-driver

Torque The torque of a couple is equal to the magnitude of one of the forces multiplied by the distance between them T = Fd Examples of torques are twisting a tap or the handle bars of a bicycle

Conditions for Equilibrium A body is in equilibrium when it is neither accelerating nor changing its rate of rotation Two conditions must be satisfied: The vector sum of the forces in any direction is zero The vector sums of moments about any points is zero (AKA the principle of moments)
