Practice Set (3) - Image Weighting and Contrast

1

MRI images that are based on the differences in longitudinal relaxation
characteristics of tissues are known as

1

MRI images that are based on the differences in the amount of hydrogen nuclei
in tissues are known as

1

MRl images that are based on the differences in the transverse relaxation
characteristics of tissues are known as

1

The image parameter that primarily affects TI weighting is

1

The image parameter that primarily affects T2 weighting is

1

In a TI weighted image, a short TR is used to

1

In a T2 weighted image, a long TR is used to

1

In a T2 weighted image, a long TE is used to

1

In a T1 weighted image, a short TE is used

1

In a T1 weighted image, tissues with short T1 relaxation times produce
what type of signal

1

In a Tl weighted image, tissues with long Tl relaxation times produce what
type of signal?

1

In a T2 weighted image, tissues with short T2 relaxation times appear

1

In a T2 weighted image, tissues with long T2 relaxation times appear

1

In a proton density weighted image, tissues with a high number of hydrogen
nuclei appear

1

In a proton density weighted image, tissues with a low number of hydrogen
nuclei appear

1

In biological tissue, which type of relaxation occurs the quickest?

1

Longitudinal relaxation occurs more efficiently in which type of tissue?

1

In a Tl weighted image, fat has a _ Tl relaxation time and therefore
appears _

1

In a Tl weighted image, CSF has a Tl relaxation time and therefore
appears _

1

In a T2 weighted image, fat has a T2 relaxation time and therefore
appears _

1

In a T2 weighted image, CSF has a T2 relaxation time and therefore
appears

1

A spin echo image with a long TR and a short TE is known as what type of
image?

1

A spin echo image with a long TR and a long TE is known as what type of
unage?

1

A spin echo image with a short TR and a short TE is known as what type of
iInage?

1

Another name for a proton density weighted image is

1

On a TI weighted image of the brain, fat appears ____ to white matter.

1

On a TI weighted image of the brain, white matter appears ____ to grey
matter

1

On a TI weighted image of the brain, grey matter appears to CSF

1

On a TI weighted image of the brain, CSF appears _____ to fat

1

On a proton density weighted image of the brain, white matter appears ____
to grey matter

1

On a proton density weighted image of the brain, CSF appears ____ to
grey matter

1

On a T2 weighted image of the brain, CSF appears ____ to grey matter

1

On a T2 weighted image of the brain, grey matter appears ____ to white
matter

1

On a TI weighted image of the knee, cortical bone appears ____ to all
other tissues

1

On a TI weighted image of the knee, bone marrow appears ____ to
meniscal tissues.

1

On a Tl weighted image of the spine, the intervertebral disk appears ____
to spinal cord.

1

On a T2 weighted image of the spine, the intervertebral disk appears ____
to the spinal cord

1

At a field strength of 1.0 tesla, the approximate Tl relaxation time of fat is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time of fat is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time of liver
tissue is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time of liver
tissue is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time for spleen
tissue is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for spleen
tissue is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time for grey
matter is

1

At a field strength of l.0 tesla, the approximate T2 relaxation time for grey
matter is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time for white
matter is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for white
matter is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time for renal
cortex tissue is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for renal
cortex tissue is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time for muscle
tissue is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for muscle
tissue is

1

At a field strength of 1.0 tesla, the approximate Tl relaxation time for renal
medulla tissue is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for renal
medulla tissue is

1

At a field strength of 1.0 tesla, the approximate Tl relaxation time for blood
is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for blood
is

1

At a field strength of 1.0 tesla, the approximate Tl relaxation time for CSF
is

1

At a field strength of 1.0 tesla, the approximate T2 relaxation time for CSF is

1

At a field strength of 1.0 tesla, the approximate T1 relaxation time for water
is

1

At a field strength of 1.0 tes1a, the approximate T2 relaxation time for water
is

1

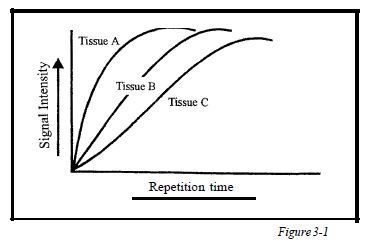

Figure 3-1 displays which type of relaxation curve?

1

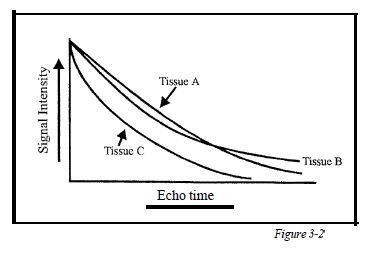

Figure 3-2 displays which type of relaxation curve?

1

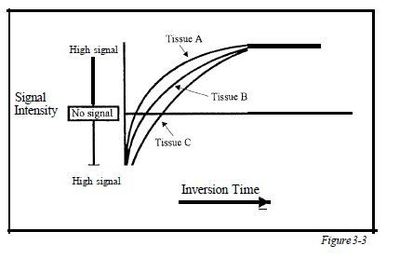

Figure 3-3 displays which type of relaxation curve?

1

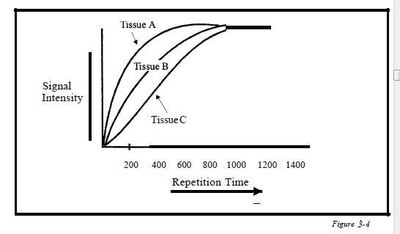

In Figure 3-4, at a TR of 200, which of the following tissues has the greatest
signal intensity?

1

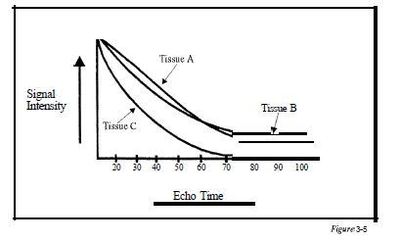

In figure 3-5, at a TE of 90, which of the following tissues has the greatest
signal intensity?

1

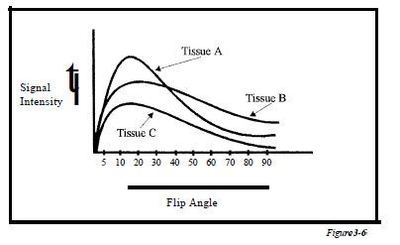

Figure 3-6 displays which type of relaxation curve?
