Description
Question 1
Question
What is Hooke's Law?
Answer
-
F=kx
-
k=Fx
-
The extension of an elastic body is proportional to the force that causes it (within its elastic limit)
-
The force on a body is proportional to the extension caused once past the elastic limit
-
Force is proportional to strain
Question 2
Question
In Hooke's law, what is k?
Answer
-
The spring constant
-
Extension
-
The length
Question 3
Question
How do you find the spring constant from a Force- extension graph?
Answer
-
1 ----------- gradient
-
gradient
-
area underneath
Question 4
Question
What does the area underneath a force-extension graph tell you?
Answer
-
The strain energy
-
The strain
-
The stress
-
The spring constant
-
Nothing
Question 5
Question
What is strain energy?
Answer
-
Energy stored in deformed materials
-
Work done in producing an extension
-
The maximum force a material can take before breaking
-
The point at which a material reaches its elastic limit
Question 6
Question
Ultimate tensile strength is...
Answer
-
the maximum tensile force that can be applied to a material before it breaks
-
the energy stored in a material when it's stretched to its limit
-
the maximum stress of a material
Question 7
Question
tensile force is a force applied to create a stretch
Answer
- True
- False
Question 8
Question
Stress =
Answer
-
force/area
-
force x area
-
force applied per unit cross sectional area
-
measured in Pa
-
measured in Nm^-2
-
the fractional change in length under load
Question 9
Question
Fractional change in length under load =
Answer
-
Stress
-
Strain
-
Young modulus
-
Strain energy
Question 10
Question
Strain is measured in N/m
Answer
- True
- False
Question 11
Question
extension/length =
Answer
-
stress
-
strain
-
young modulus
Question 12
Question
What's the effective spring constant of springs in parallel?
Answer
-
k1 + k2
-
1/K1 + 1/K2
-
k1 x k2
Question 13
Answer
-
top - series bottom - parallel
-
top - parallel bottom - series
Question 14
Question
How do you find the effective spring constant of two springs in series?
Answer
-
1/K = 1/k1 + 1/k2
-
1/k = k1 x k2
-
k = k1 + k2
Question 15
Question
What is a ductile material?
Answer
-
materials that have a large plastic region and can therefore be drawn into wires
-

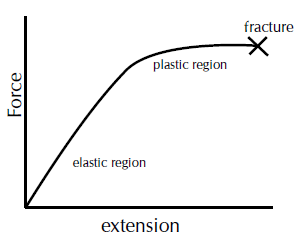

Image:ductile_material (image/png)
-

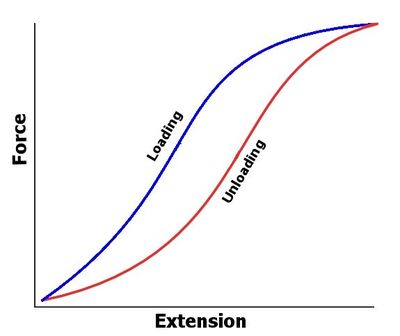

Image:elastic (image/jpg)
-
Materials that have a very small elastic limit and therefore break easily
-
Materials that are very stretchy
Question 16
Question
Brittle materials distort very little and fracture beyond their elastic limit
Answer
- True
- False
Question 17
Answer
-
brittle material
-
ductile material
-
elastic material
-
polymeric material
Question 18
Question
What's the equation for strain energy?
Answer
-
E=1/2Fx
-
E=1/2kx^2
-
E=1/kx
-
E=kFx/2
Question 19
Question
What is the young modulus?
Answer
-
A constant for a given material
-
Stress/strain
-
Fl/Ax
-
the stiffness of a material
-
The maximum force a material can withstand before fracturing
Question 20
Question
A material with a small young modulus is stiff
Answer
- True
- False
Question 21
Question
On a stress-strain graph what is the yield point?
Answer
-
The point from which the force required to stretch a material decreases
-
The point from which the force required to stretch a material increases
-
The elastic limit
Question 22
Question
On a stress-strain graph what is the limit of proportionality?
Answer
-
The elastic limit, above which plastic deformation occurs
-
The elastic limit, above which elastic deformation occurs
-
The maximum force applied to a material before it breaks
-
The point at which a material fractures
Question 23
Question
Plastic deformation is reversible and disappears when the load is removed
Answer
- True
- False
