Sketchup

Description

quiz on sketchup
Samuel Melendez
Quiz by Samuel Melendez, updated more than 1 year ago
Samuel Melendez
Created by Samuel Melendez almost 9 years ago
3097
0
0

Resource summary

Question 1

Question
match the label with the button
Image:
1a259007-fbf1-4aca-99cb-5fb0e7194fc1 (image/jpeg)
Answer
  • block tool
  • eraser
  • arrow tool
  • push/pulltool

Question 2

Question
Match the label with the button
Image:
3ad5b642-fc4b-4b00-8ea3-e59e4f79fd2b (image/jpeg)
Answer
  • line tool
  • text tool
  • offset tool
  • curve tool

Question 3

Question
Match the label with the button
Image:
ec5568bd-476a-4e4c-9725-98b683514760 (image/jpeg)
Answer
  • half tool
  • arc tool
  • diamond tool
  • move tool

Question 4

Question
Match the label with the button
Image:
913eda63-f5d6-455b-8e86-90ec7b1eb83a (image/jpeg)
Answer
  • Rectangle tool
  • shape tool
  • scale tool
  • offset tool

Question 5

Question
Match the label with the button
Image:
a22df60b-3834-41c0-b57a-e59138d448cf (image/jpeg)
Answer
  • selection tool
  • measurement tool
  • orb tool
  • turn tool

Question 6

Question
match the label with the button
Image:
14703ced-4cb4-4571-a6b2-7977ac11d67e (image/jpeg)
Answer
  • paint tool
  • eraser tool
  • eye glass tool
  • zoom tool

Question 7

Question
Which mark represents feet in sketchup?
Answer
  • "
  • '
  • #
  • ft

Question 8

Question
Which mark represents inches in sketchup?
Answer
  • "
  • '
  • in
  • #

Question 9

Question
The measurement tool creates a .....
Answer
  • solid line
  • curved line
  • dotted line

Question 10

Question
glass is for applying material that is
Answer
  • invisible
  • see through
  • very dark

Question 11

Question
The blue line in sketchup means..
Answer
  • horizontal, left to right
  • Vertical, up and down
  • nothing

Question 12

Question
Red lines in sketchup mean
Answer
  • horizontal lines
  • vertical lines
  • invisible lines

Question 13

Question
The green blocks indicate the _____________ tool has been selected.
Image:
a0524b2e-68ae-46ed-b7b0-3e3d9858e692 (image/jpeg)
Answer
  • move
  • scale
  • copy
  • block

Question 14

Question

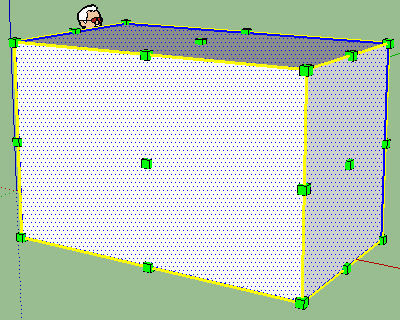

If we were to push in one of the green blocks the object should
Image:
8eb96755-7dfc-4b95-86d6-63149a72f87f (image/jpeg)
Answer
  • explode
  • disappear
  • get smaller
  • get larger

Question 15

Question
If we were to pull away one of the green blocks the object should
Image:
049149ae-27e8-470c-b50d-0bd78e9be33b (image/jpeg)
Answer
  • get smaller
  • get bigger
  • disappear
  • explode

Question 16

Question

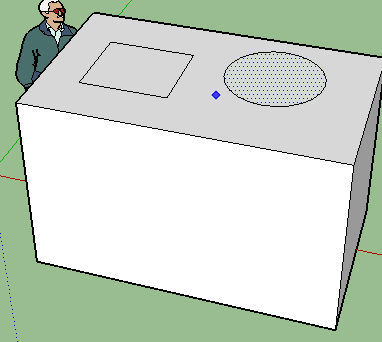

Which shape in the object shown can be pulled up under the current conditions
Image:
0968b80c-7940-44fa-b8df-403121fb7f4c (image/jpeg)
Answer
  • the cube
  • the rectangle
  • the circle

Question 17

Question
An object that is dotted can be pushed or pulled.
Answer
  • True
  • False

Question 18

Question

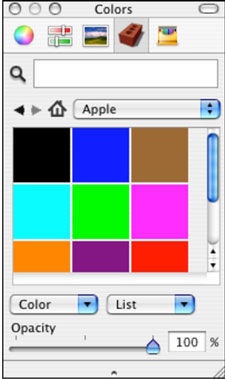

match the label with the button
Image:
aa041ddb-598b-43fe-a689-82eab824a12b (image/jpeg)
Answer
  • only for brick
  • only for color
  • for all materials

Question 19

Question
On a MAC To copy in sketchup you can use the move tool with
Answer
  • alt
  • option
  • command
  • esc

Question 20

Question
match the label with the button
Image:
1bb2a1ee-9727-4262-9d0a-97d5e03af8a6 (image/jpeg)
Answer
  • freehand
  • snake

Question 21

Question
Match the label with the button
Image:
3afa7168-2773-4d48-bf15-8744a4c75769 (image/jpeg)
Answer
  • circle tool
  • button tool
  • 3d text
  • large A tool

Question 22

Question
Match the label with the buton
Image:
4b3c991d-4e54-46f8-9a77-a86fd42d15ee (image/jpeg)
Answer
  • Dimensions
  • 3 tool

Question 23

Question

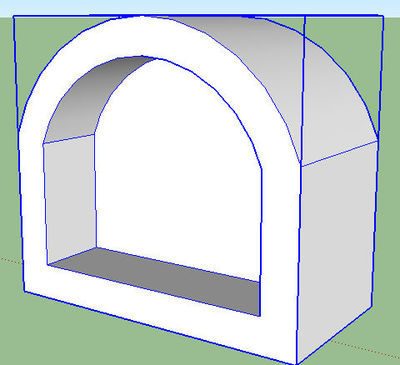

The blue box around the object means......
Image:
69e4d10b-d224-4952-b760-4c61cdb22e40 (image/jpeg)
Answer
  • it has been formatted
  • the bucket tool was used
  • it was grouped
  • it was exploded

Question 24

Question
A 3d object is
Answer
  • something coming at you in a movie
  • something that has width, height and depth (length).
  • something that is not real

Question 25

Question
To create a circle with a 4 foot diameter simple click and drag with the circle tool and type...
Answer
  • 4'
  • 2'
  • 4
  • 2

Question 26

Question
To raise an object 2 feet of the ground pull it with the push pull tool, release and type
Answer
  • 2
  • 24
  • 2 feet
  • 2"

Question 27

Question
When the circle tool is selected, if sides is 24 what shape will be drawn?
Answer
  • a circle
  • a star
  • a rectangle

Question 28

Question
When the circle tool is selected, if sides is 6 what shape will be drawn?
Answer
  • circle
  • hexagon
  • triangle
  • star

Question 29

Question
When the circle tool is selected, if sides is 3 what shape will be drawn?
Answer
  • circle
  • square
  • triangle
  • octagon

Question 30

Question
When the circle tool is selected, if sides is 8 what shape will be drawn?
Answer
  • hexagon
  • octagon
  • nothing
  • circle

Question 31

Question
"All supported images type" is chosen when we want to import a
Image:
Capturetest (binary/octet-stream)
Answer
  • font
  • a 3d model
  • 2d image
  • animation

Question 32

Question
According to the image what shape will be drawn
Image:
Capturetest2 (binary/octet-stream)
Answer
  • circle
  • triangle
  • rectangle
  • hexagon

Question 33

Question
Which of the following is not a material choice in sketchup?
Answer
  • concrete
  • vegetation
  • fur
  • glass

Question 34

Question
The shape was created by most likely using the
Image:
2+Point+Arc+Tool (binary/octet-stream)
Answer
  • move tool
  • scale tool
  • 2 point arc tool
  • the line tool

Question 35

Question
drag answer to button
Image:
Warehouse (binary/octet-stream)
Answer
  • Warehouse
  • pop up shapes

Question 36

Question
These choices allow you to format the object with
Image:
Glass (binary/octet-stream)
Answer
  • metal
  • many warm colors
  • transparent material

Question 37

Question
The object on the left was created from the object on the right by
Image:
Move+Tool (binary/octet-stream)
Answer
  • adding a triangle
  • by lifting the line with the move tool
  • cutting away

Question 38

Question
The shape produced will be a
Image:
Square+5+Feet (binary/octet-stream)
Answer
  • 5 foot triangle
  • a square 5 inches by 5 inches
  • a circle with a diameter of 10 feet
  • a square 5 feet by 5 feet

Question 39

Question
The shape produced will be
Image:
12+Foot+Diameter (binary/octet-stream)
Answer
  • square that is 6 by 6
  • a circle with a 12 foot diameter
  • a circle with a 6 foot diameter

Question 40

Question
The blue lines were produced by
Image:
Triple+Clicking (binary/octet-stream)
Answer
  • painting
  • formating with the bucket tool
  • triple clicking

Question 41

Question
How many objects have been selected
Image:
Objects+Selected+3 (binary/octet-stream)
Answer
  • 1
  • 2
  • 3
  • 15

Question 42

Question
the follow me tool can change the top circle into a
Image:
Follow+Me+Tool+Sphere (binary/octet-stream)
Answer
  • triangle
  • pattern
  • many circles
  • sphere

Question 43

Question
The sphere was created using the
Image:
Created+Using+The+Follow+Me+Tool (binary/octet-stream)
Answer
  • sphere tool
  • line tool
  • follow me tool

Question 44

Question
the unique shaoe was produced using the
Image:
Unique+Shape+Follow+Me+Tool (binary/octet-stream)
Answer
  • circle tool
  • scale tool
  • follow me tool

Question 45

Question
The peak in the object on the right was created from the object on the left by
Image:
Creating+A+Peak+With+The+Move+Tool (binary/octet-stream)
Answer
  • adding a pyramid
  • using the pyramid tool
  • using the move tool

Question 46

Question
Drag the answer to the button
Image:
Measurement+System (binary/octet-stream)
Answer
  • measurements based on the U.S. system
  • measurements based on ancient china

Question 47

Question
Drag the answer to the button
Image:
Measurement+System (binary/octet-stream)
Answer
  • International system of measurement
  • Only used in American
