1 ATTENT. NAVI. EXAM. PREP.

Question 1

Question

5 If true course is 065,wind 010/40Kts and true air speed 150Kts what will the true heading and ground speed be?

Answer

O '052 and 124Kts.
O '040 and 140Kts
O '068 and 124Kts
O '050 and 176Kts.

Question 2

Question

6 An aeroplane starts a 500NM flight from point A to point B While flying 200NM from point A the pilot realizes that he is 10NM to the right of the desired course.What is the required heading correction to proceed direct to point B?]

Answer

O 5 degrees to the left.
O 3 degrees to the left.
O 7 degrees to the left.
O 7 degrees to the right.

Question 3

Question

8 To what time difference does a longitude difference of 60 degrees,38 minutes and 45 seconds correspond?

Answer

O '4h , 02min , 34sec.
O '4h , 10min , 35sec
O '5h , 23min , 20sec
O '5h , 10min , 25sec.

Question 4

Question

21 The angle between the direction of true north and the longitudinal axis of the aeroplane is called:

Answer

O True heading
O Magnetic heading
O True track
O True bearing

Question 5

Question

26 Radial 360 of a VOR has the direction of :

Answer

O Magnetic north
O true north

Question 6

Question

30 Isogonic lines are lines which connect places with the same magnetic variation.

Answer

O True
O False

Question 7

Question

31 Which is the order that geographic coordinates are given?

Answer

O Latitude first then longitude
O Longitude first then latitude

Question 8

Question

34 If the surface wind of an airport is 020/35kts what is the crosswind component for a take off from runway 33?

Answer

O '27kts
O '33kts
O '22kts
O '17kts

Question 9

Question

124 Each person operating an aircraft at VFR cruising altitude shall maintain an odd-thousand plus 500-foot altitude while on a

Answer

O Magnetic course of 0° through 179°.
O magnetic heading of 0° through 179°.
O true course of 0° through 179°.
O True heading of 0° through 179°.

Question 10

Question

125 . Determine the magnetic course from Ermoupolis/Syros(LGSO) to Athinai/Hellinikon(LGAT).

Answer

O 295°.
O 118°.
O 264°.
O 114°.

Question 11

Question

126 Determine the magnetic heading for a flight from Lamia-Army airport to Stefanovikion-Army (LGSV). The wind is from 330° at 25 knots, the true airspeed is 100 knots.

Answer

O 009°.
O 360°.
O 020°
O 90°.

Question 12

Question

127 Determine the magnetic heading for a flight from Skiathos (LGSK) to Tanagra (LGTG). The wind is from 215° at 25 knots and the true airspeed is 125 knots.

Answer

O 182°.
O 161°.
O 191°.
O 177°.

Question 13

Question

128 What is the magnetic heading for a flight from Larisa (LGLA) to Stefanovikio-Army. The wind is from 030° at 12 knots and the true airspeed is 95 kts.

Answer

O 116°
O 123°.
O 130°.
O 360°.

Question 14

Question

129 Determine the magnetic heading for a flight from Araxos(LGRX) to Preveza-Aktion(LGPZ). The wind is from 300° at 14 knots and the true airspeed is 90 knots.

Answer

O 320°.
O 325°.
O 331°.
O 090°

Question 15

Question

130 Determine the compass heading for a flight from Thessaloniki-Makedonia(LGTS) to Kozani-Phillipos(LGKZ). The wind is from 070° at 16 knots and the true airspeed is 90 knots.Compass correction on fig.4.

Image:

f227877b-f2e0-470d-9449-7c8074104deb (image/jpeg)

Answer

O 253°.
O 200°.
O 205°.
O 300°.

Question 16

Question

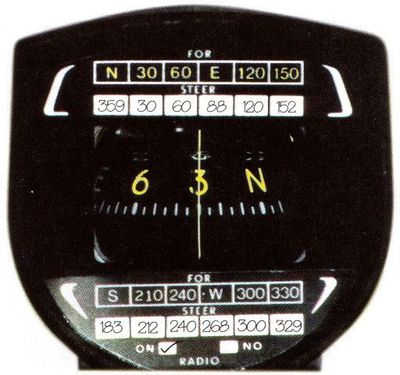

131 . Determine the compass heading for a flight from Megara-Army(LGMG) to Skyros(LGSY). The wind is coming from 290/18 kts and the true airspeed is 85 knots. Compass correction on fig.4.

Image:

4494edc1-678f-4c87-934c-7391e60def0c (image/jpeg)

Answer

O 027°
O 050°
O 035°
O 045°

Question 17

Question

132 Determine the compass heading for a flight from Tanagra(LGTG) to Elefsis (LGEL). The wind is calm and the true airspeed is 90 knots.Compass correction on fig.4.

Image:

74d61264-2736-4406-bdfe-74f12968af74 (image/jpeg)

Answer

O 183°
O 123°.
O 186°.
O 220°.

Question 18

Question

133 Determine the magnetic course from Kerkyra-Kapodistrias(LGKR) to Ioannina(LGIO).

Answer

O 080°.
O 075°.
O 091°.
O 262°.

Question 19

Question

134 . Determine the magnetic heading from Larissa(LGLR) to Thessaloniki-Makedonia(LGTS) .The wind is from 330° at 25 knots, the true airspeed is 110 knots.

Answer

O 010°.
O 017°.
O 023°
O 195°

Question 20

Question

135 Determine the compass heading from Limnos(LGLM) to Skyros(LGSY). (Fig.4)

Image:

79a3dee3-4200-4065-9b8d-cde44d4d1f33 (image/jpeg)

Answer

O 211°.
O 013°.
O 220°.
O 031°.

Question 21

Question

138 . The VOR receiver is tuned to LAR VOR and the aircraft is positioned over Platamon. Wich VOR is correct? Fig. 1.

Image:

d02beb4b-ee7e-4574-a7d4-a87eb9c141c6 (image/jpeg)

Answer

O 8.
O none.
O 5
O 6

Question 22

Question

139 What course should be selected on the omni bearing selector (OBS) to make a direct flight from Skyros (LGSY) to SKL VOR with a TO indication.

Answer

O 288°.
O 108°.
O 010°.
O 190°.

Question 23

Question

141 The VOR receiver is tuned to MIL VORTAC and the aircraft is positioned over the Thira Island NE of Paros. Wich VOR indication is correct? (Fig.1)

Image:

73bd8b1e-1c06-4f96-9000-ef4e2721fc77 (image/jpeg)

Answer

O 7.
O 1.
O 8.
O 5.

Question 24

Question

143 The VOR receiver has the indication shown on Fig. 1/Illustration 3. What is the aircraft's position relative to the station?

Image:

2443c121-badb-44fc-91ca-ce8b9c10c422 (image/jpeg)

Answer

O Southeast, or eighter, over the station.
O East.
O West.
O Southeast.

Question 25

Question

144 The VOR receiver has the indication shown on Fig. 1/Illustration 8. What radial is the aircraft crossing?

Image:

21838614-a52d-444c-b067-befd8f5fe9c3 (image/jpeg)

Answer

O (2) 030.
O (1) 210.
O (3) 300.
O (1) and (2) are correct.

Question 26

Question

145 The VOR receiver is tuned to ZAK VOR and shows as in Illustr. 8/Fig. 1. Our position is estimated

Image:

2c5a824a-0607-404c-b0fd-627259b042ce (image/jpeg)

Answer

O Over Messologi town on radial 030.
O Over KFL VOR on radial 310.
O Over Araxos(LGRX) on radial 210.
O None.

Question 27

Question

146 The VOR receiver is tuned to AGR VOR and shows as in Illustr. 2/Fig. 1. Our position is estimated

Image:

b2ac1c75-afbe-4fa5-b598-25bab4cf8fad (image/jpeg)

Answer

O Over Karditsa.
O Over PRV VOR.
O Over Andravida(LGAD).
O Over ARA VORTAC.

Question 28

Question

147 . Keep heading (as shown in illustr.5/Fig 1) from our VOR, tuned TRL VOR(Tripolis). Estimated to be over the town of,

Image:

b90dbfcd-37f5-42b2-bf63-087f8980a599 (image/jpeg)

Answer

O Kalamata.
O Korinthos.
O Tripolis.
O Navplion.

Question 29

Question

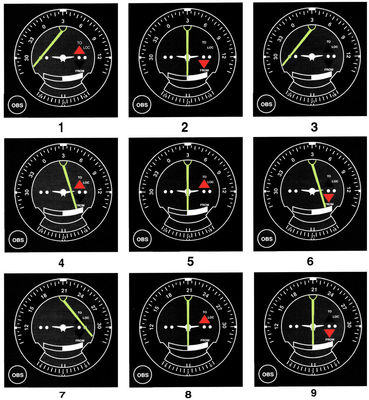

148 Our position supposed to be over Ag. Efstratios. VOR 1. receiver is tuned to LMO VOR and VOR 2. receiver is tuned to SKYROS VORTAC. According to Fig.1 indications should be:

Image:

1bfbe9d6-11e3-4ce1-a5cd-7f7ef8a9ef17 (image/jpeg)

Answer

O (i) VOR 1, as in illustr.1 & VOR 2. as in illustr. 7.
O [ii] and [iii] are correct.
O (ii) VOR 1, as in illustr.9 & VOR 2. as in illustr. 2.
O (iii) VOR 1, as in illustr.9 & VOR 2. as in illustr. 8.

Question 30

Question

150 The VOR receiver is tuned to MKR VOR, and the aircraft is positioned over the Lagada VFR Route Point nearby the town of Lagada, heading outbound. Wich VOR indication is correct from Fig. 1?

Image:

29e2ac0d-2151-41b0-a6eb-9ff366fff631 (image/jpeg)

Answer
