Experiments of photosynthesis

Description

10th Science Slide Set on Experiments of photosynthesis, created by Rishu Kumar on 28/02/2020.
Rishu Kumar
Slide Set by Rishu Kumar, updated more than 1 year ago
Rishu Kumar
Created by Rishu Kumar over 4 years ago
587
0

Resource summary

Slide 1

    Conditions necessary for photosynthesis:
    Sunlight Chlorophyll Carbon Dioxide Water

Slide 2

    Basis of Experiments:
    Plants make starch as their food. Starch gives a blue black colour with iodine We destarch the leaves by keeping it in a dark room for about 3 days.

Slide 3

    Sunlight necessity experiment
    Destarch the leaf. Cover the centre part of leaf with aluminium foil or black paper. (seal tightly so that sunlight can not enter) Keep for 3 - 4 days then pluck out the leaf and remove the foil. Boil the leaf in water to break the cell membrane and make it permeable. Keep it in alcohol and give a water bath. (since alcohol is flammable and can not be heated directly.) Wash with warm water and keep in a petri dish. Pour iodine solution.

Slide 4

    Observation & Conclusion
    Observation The uncovered part of leaf turns blue black but the covered part remains the same.
    Result Sunlight is necessary for photosynthesis. Leaves make starch as a food by photosynthesis

Slide 5

Slide 6

Slide 7

    Chlorophyll necessity experiment

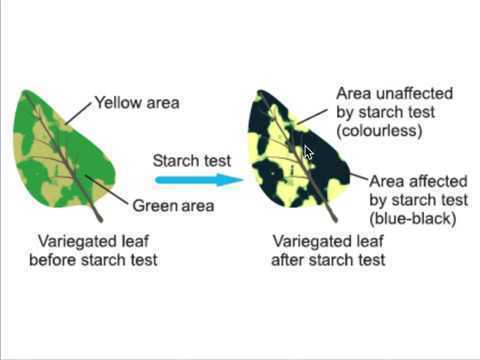

    Destarch a plant with variegated leaves (like croton) . Keep in bright sunshine  for 3 - 4 days. Mark the boundries of non green parts (so as to differentiate between green and non green parts after leaf loses its colour) Boil the leaf in water. Keep in alcohol and give a water bath. Wash it in hot water. Dip in iodine solution. Observation: Only the area which was earlier green, turned blue black in colour. Result: Chlorophyll is important for photosynthesis.

Slide 8

    CO2 Necessity experiment
    Take two healthy potted pots of nearly same size. Destarch them and place each of them on glass plates. Keep a watch glass containing potassium hydroxide (KOH) near one plant. KOH will absorb the CO2 Cover each plant with separate bell jars and seal them using vaseline. Keep in sunlight for around 2 hours and then pluck a leaf from both plants. Pour iodine to do the starch test. Observation: The leaf which had no CO2 around it didn't turn blue-black while the other did Result: Carbon Dioxide is necessary for photosynthesis.
