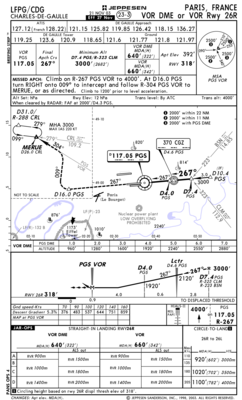

VOR Plate

Description

VOR
Ruben Vazquez
Quiz by Ruben Vazquez, updated more than 1 year ago
Ruben Vazquez
Created by Ruben Vazquez about 8 years ago
36
0
1 2 3 4 5 (0)

Resource summary

Question 1

Question
What is the minimum height you should be at, at D7.4 PGS?
Answer
  • 2000'
  • 3000'
  • 2682'

Question 2

Question
Which point on the chart marks the point at which the aircraft turns left to commence the inbound track of 099* to the MERUE hold?
Answer
  • 279* from CRL
  • 304* from PGS
  • R-288 from CRL

Question 3

Question
At what maximum speed should the hold at MERUE be flown?
Answer
  • 205 Knots
  • 230 Knots below 14,000ft.
  • 220 Knots

Question 4

Question
At which point on the missed approach procedure should you climb to prior to level acceleration?
Answer
  • 1200'
  • 4000'
  • D16.0 from PGS.

Question 5

Question
If approaching D7.4 PGS from CLM on the track of 323*, what is your Minimum Sector Altitude (MSA) ?
Answer
  • 2500'
  • 2000'
  • 2000' with PGS DME.

Question 6

Question
What is the Final Approach Fix, when cleared by radar?
Answer
  • D4.0 PGS at 1920'.
  • D4.3 PGS at 2000'
  • Overhead CGZ locator at 2120'

Question 7

Question
At what distance from the PGS VOR DME should you be when passing 1280' ?
Answer
  • D2.0 from PGS NDB
  • D3.0 from PGS DME
  • D2.0 from PGS DME

Question 8

Question
What descent gradient is used on this VOR approach?
Answer
  • 267*
  • 5.3*
  • 3.0*

Question 9

Question
Which is the main navigation aid used for this approach?
Answer
  • PGS VOR DME
  • CGZ
  • PGS NDB DME

Question 10

Question
What is the transition altitude when arriving from the BSN VOR?
Answer
  • 2500'
  • 2000'
  • 4000'
Show full summary Hide full summary
