REGISTROS PROCESADOR 8086
Registro SI indice fuente de 16 Bits
Registro DI de destino
16 Bits
Registro SP apuntador de pila, se usa para desplazar una palabra en proceso
16 Bits
Registro BP apuntador de base facilita la referencia de parametros en una pila
REGISTROS DE DEPOSITOS GENERAL
16 BITS
Registro AX acumulador se usa para operaciones de entrada y salida
8 Bits
AL
8 Bits
AH
16 BITS
Registro BX de proposito general
8 Bits
BL
8 Bits
BH
16 BITS
Registro CX contador de bucles con operaciones con cadenas
8 Bits
CL
8 Bits
CH
16 BITS
Registro DX de datos
8 bits
DL
8 bits
DH
16 Bits
Registro apuntador de instrucciones contiene el desplazamiento de direccion de la instruccion siguiente
16 bITS

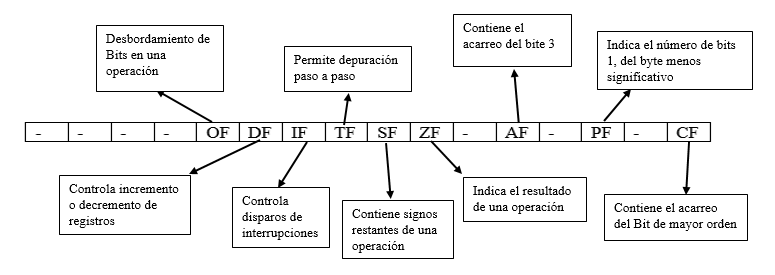

Registros de banderas
Registros de segmentos
Registro ES un registro extra de segmento para el direccionamiento de memoria
Registro SS Permite la colocacion en la memoria de una pila para almacenamiento temporal
Registro DS almacena la direccion inicial de un segmento de datos
Registro CS almacena la direccion inicial de un segmento de codigo
Media attachments
c7c609cb-f2be-4b48-ae29-fdd30afb127e (image/png)
