TYPES OF WEATHERING!!!
Description
GCSE Geography Mind Map on TYPES OF WEATHERING!!!, created by flynn4767 on 21/11/2013.
No tags specified
geography
geography
gcse
Mind Map by
flynn4767
, updated more than 1 year ago
More
Less
Created by
flynn4767
almost 11 years ago
43
0
0
Resource summary
TYPES OF WEATHERING!!!

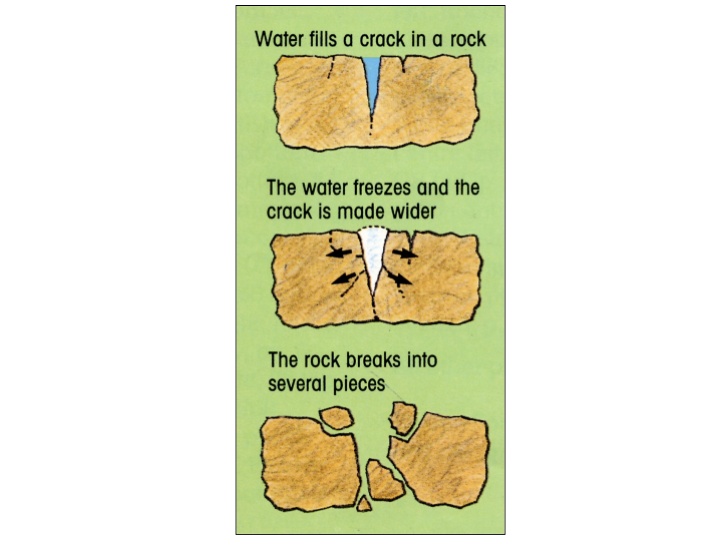

FREEZE-THAW!
Step 1 - Water - eg from rainfall or melting snow and ice - becomes trapped in a crack or joint in the rock.
Step 2 - If the air temperature drops below freezing, the water will freeze and expand by 9-10 per cent putting pressure on the rock.
Step 3 - The ice will melt when the temperature rises above freezing.
Step 4 - If this process happens repeatedly, the rock will weaken and eventually shatter into angular fragments.
Step 5 - The fragments may then be deposited as scree at the foot of a slope.
This process is most effective where the temperature fluctuates around 0°C

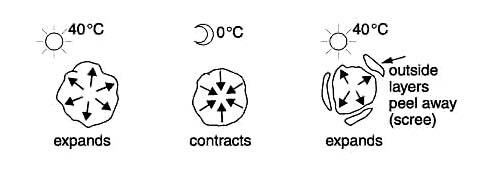

Onion Skin/ Exfoliation
Media attachments
Freeze-Thaw_weathering (image/jpg)
Onion_Skin (image/jpg)
