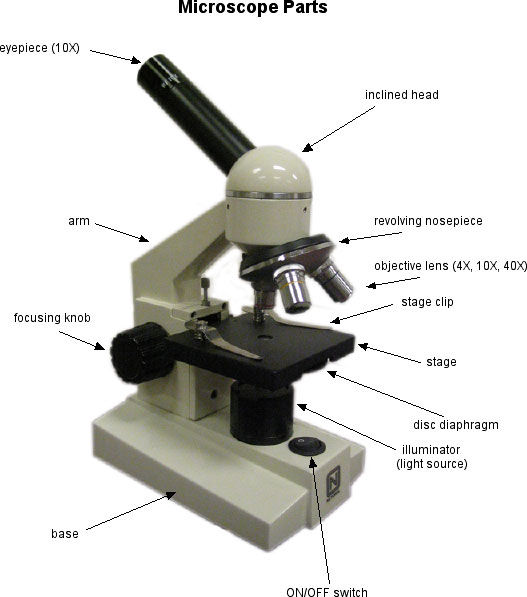

Ch 1 MICROSCOPE
  1. Base- keeps it steady
    1. stage and stage clips - holds slide in place
      1. Light Source- built in light bulb that lights the specimen
        1. Diaphragm- controls amount of light passing through specimen
          1. Objective lens- magnifies the specimen by different powers for eg x4, x10, x 40
            1. Eye piece lens - magnifies specimen usually x 10
              1. Coarse Focus Wheel- Brings the image roughly into focus
                1. Fine Focus Wheel brings the image into sharp focus
