2 NAVIG. EXAM. PREP.

Question 1

Question

27 A full scale deflection of a VOR needle (CDI) shows an angular deflection of ______ from the selected radial.

Answer

O At least 10 degrees
O At least 5 degrees
O At least 20 degrees

Question 2

Question

28 Which radial has to be selected on the omnibearing selector (OBS) of a VOR in order to center the needle(CDI) with a TO indication if the aeroplane's position is east of the station?

Answer

O '270
O '090
O '180
O '360

Question 3

Question

29 One nautical mile is equal to:

Answer

O '6080ft
O '6800ft
O '5280ft
O '3280ft

Question 4

Question

30 Isogonic lines are lines which connect places with the same magnetic variation.

Answer

O True
O False

Question 5

Question

31 Which is the order that geographic coordinates are given?

Answer

O Latitude first then longitude
O Longitude first then latitude

Question 6

Question

32 Which of the following charts has the biggest scale?

Answer

O '1:250.000
O '1:500.000
O '1:1.000.000

Question 7

Question

33 Which transponder code is used in case of two-way radio communication failure?

Answer

O '7600
O '7700
O '7500

Question 8

Question

34 If the surface wind of an airport is 020/35kts what is the crosswind component for a take off from runway 33?

Answer

O '27kts
O '33kts
O '22kts
O '17kts

Question 9

Question

35 Which temperature on the Fahrenheit scale equals 15C (Celsius)?

Answer

O '59F
O '49F
O '65F
O '69F

Question 10

Question

36 What do you expect to be different during a climb with a strong headwind compared to a climb with calm wind?

Answer

O The angle of climb
O The rate of climb
O The true airspeed

Question 11

Question

37 If a flight is made from an area of high pressure to an area of lower pressure without the altimeter setting being adjusted the altimeter will indicate:

Answer

O Higher than the actual altitude above sea level.
O Lower than the actual altitude above sea level.
O The actual altitude above sea level.

Question 12

Question

38 Which transponder code will you use in the event of an engine failure?

Answer

O '7700
O '7500
O '7600

Question 13

Question

39 What is the maximum acceptable bearing error for a VOR accuracy check with a designated ground checkpoint?

Answer

O '± 4 degrees
O '± 5 degrees
O '± 6 degrees
O '± 10 degrees.

Question 14

Question

121 Which cruising altitude is appropriate for a VFR flight on a magnetic course of 165 degrees?

Answer

O Odd thousands plus 500 feet.
O Even thousands
O Even thousands plus 500 feet.
O Odd thousands

Question 15

Question

122 Which VFR cruising altitude is acceptable for a flight on a Victor Airway with a magnetic course of 175 degrees? The terrain is less than 1000 feet.

Answer

O 5500 feet
O 4500 feet
O 5000 feet
O 6000 feet

Question 16

Question

123 Which VFR cruising altitude is appropriate when flying above 3000 feet AGL on a magnetic course of 185°?

Answer

O 4500 feet.
O 4000 feet.
O 5000 feet.
O 5500 feet.

Question 17

Question

124 Each person operating an aircraft at VFR cruising altitude shall maintain an odd-thousand plus 500-foot altitude while on a

Answer

O Magnetic course of 0° through 179°.
O magnetic heading of 0° through 179°.
O true course of 0° through 179°.
O True heading of 0° through 179°.

Question 18

Question

125 . Determine the magnetic course from Ermoupolis/Syros(LGSO) to Athinai/Hellinikon(LGAT).

Answer

O 295°.
O 118°.
O 264°.
O 114°.

Question 19

Question

136 What is your approximate position on course from LGTS to LGBL, if the VOR receiver indicates you are on the radial 065 of LAR VOR?

Answer

O Akr. Dermatas.
O Plata Point.
O Akr. Platamon
O Over Litochoron LGD 74.

Question 20

Question

137 What is your approximate position on course from Lamia-Army to Larissa(LGLR), if the VOR receiver indicates 285 radial of AGH VOR?

Answer

O Over Farsala.
O Over Volos .
O Over N.Anchialos (LGBL) indicating NAV flag.
O Over Stefanovikion-Army(LGSV).

Question 21

Question

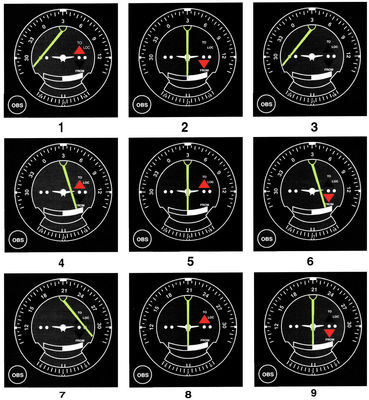

138 . The VOR receiver is tuned to LAR VOR and the aircraft is positioned over Platamon. Wich VOR is correct? Fig. 1.

Image:

6a98cc93-2ec7-430d-ad19-dc80168cb913 (image/jpeg)

Answer

O 8.
O none.
O 5
O 6

Question 22

Question

139 What course should be selected on the omni bearing selector (OBS) to make a direct flight from Skyros (LGSY) to SKL VOR with a TO indication.

Answer

O 288°.
O 108°.
O 010°.
O 190°.

Question 23

Question

140 What is the approximate position of the aircraft if the VOR receivers, indicate the 235 radial of MKR VOR and the 205 radial of FISKA VOR? (Fig.1)

Answer

O Katero Point(City of Katerini).
O Sedes(LGSD)
O Alexandria-Army Airport(LGAX)
O Kora Point.(Koronia lake).

Question 24

Question

141 The VOR receiver is tuned to MIL VORTAC and the aircraft is positioned over the Thira Island NE of Paros. Wich VOR indication is correct? (Fig.1)

Image:

e221cf9b-003f-4365-9a84-610f54b987eb (image/jpeg)

Answer

O 7.
O 1.
O 9.
O 5.

Question 25

Question

142 The VOR receiver has the indication shown on Fig. 1/Illustration 1. What is the aircraft's position relative to the station?

Image:

05077778-2132-49d1-9e47-694866effcee (image/jpeg)

Answer

O South.
O North.
O East.
O West.

Question 26

Question

126 Determine the magnetic heading for a flight from Lamia-Army airport to Stefanovikion-Army (LGSV). The wind is from 330° at 25 knots, the true airspeed is 100 knots.

Answer

O 009°.
O 360°.
O 020°
O 90°.

Question 27

Question

127 Determine the magnetic heading for a flight from Skiathos (LGSK) to Tanagra (LGTG). The wind is from 215° at 25 knots and the true airspeed is 125 knots.

Answer

O 182°.
O 161°.
O 191°.
O 177°.

Question 28

Question

128 What is the magnetic heading for a flight from Larisa (LGLA) to Stefanovikio-Army. The wind is from 030° at 12 knots and the true airspeed is 95 kts.

Answer

O 116°
O 123°.
O 130°.
O 360°.

Question 29

Question

129 Determine the magnetic heading for a flight from Araxos(LGRX) to Preveza-Aktion(LGPZ). The wind is from 300° at 14 knots and the true airspeed is 90 knots.

Answer

O 320°.
O 325°.
O 331°.
O 090°

Question 30

Question

130 Determine the compass heading for a flight from Thessaloniki-Makedonia(LGTS) to Kozani-Phillipos(LGKZ). The wind is from 070° at 16 knots and the true airspeed is 90 knots.Compass correction on fig.4.

Image:

05b95021-efc9-4fbd-b451-e4d3f1cb72a7 (image/jpeg)

Answer

O 253°.
O 200°.
O 205°.
O 300°.

Question 31

Question

131 . Determine the compass heading for a flight from Megara-Army(LGMG) to Skyros(LGSY). The wind is coming from 290/18 kts and the true airspeed is 85 knots. Compass correction on fig.4.

Image:

fef40f79-c4c6-4610-9b96-7e2dbccf34c5 (image/jpeg)

Answer

O 027°
O 050°
O 035°
O 045°

Question 32

Question

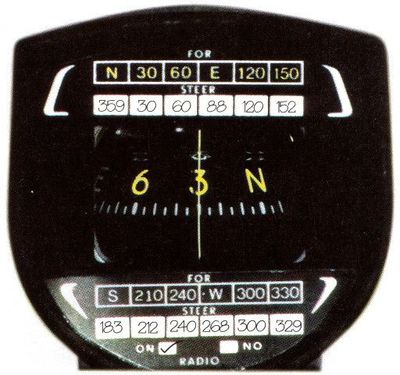

132 Determine the compass heading for a flight from Tanagra(LGTG) to Elefsis (LGEL). The wind is calm and the true airspeed is 90 knots.Compass correction on fig.4.

Image:

44805888-c2de-491b-947e-c9d666b92809 (image/jpeg)

Answer

O 183°
O 123°.
O 186°.
O 220°.

Question 33

Question

133 Determine the magnetic course from Kerkyra-Kapodistrias(LGKR) to Ioannina(LGIO).

Answer

O 080°.
O 075°.
O 091°.
O 262°.

Question 34

Question

134 . Determine the magnetic heading from Larissa(LGLR) to Thessaloniki-Makedonia(LGTS) .The wind is from 330° at 25 knots, the true airspeed is 110 knots.

Answer

O 010°.
O 017°.
O 023°
O 195°

Question 35

Question

135 Determine the compass heading from Limnos(LGLM) to Skyros(LGSY). (Fig.4)

Image:

afc7ab2c-7b04-48f4-94a3-98559348202c (image/jpeg)

Answer

O 211°.
O 013°.
O 220°.
O 031°.
